Speedo Marine (Pte) Ltd.

LineLazer ( Spray Painting )
Product Code & Goods Description

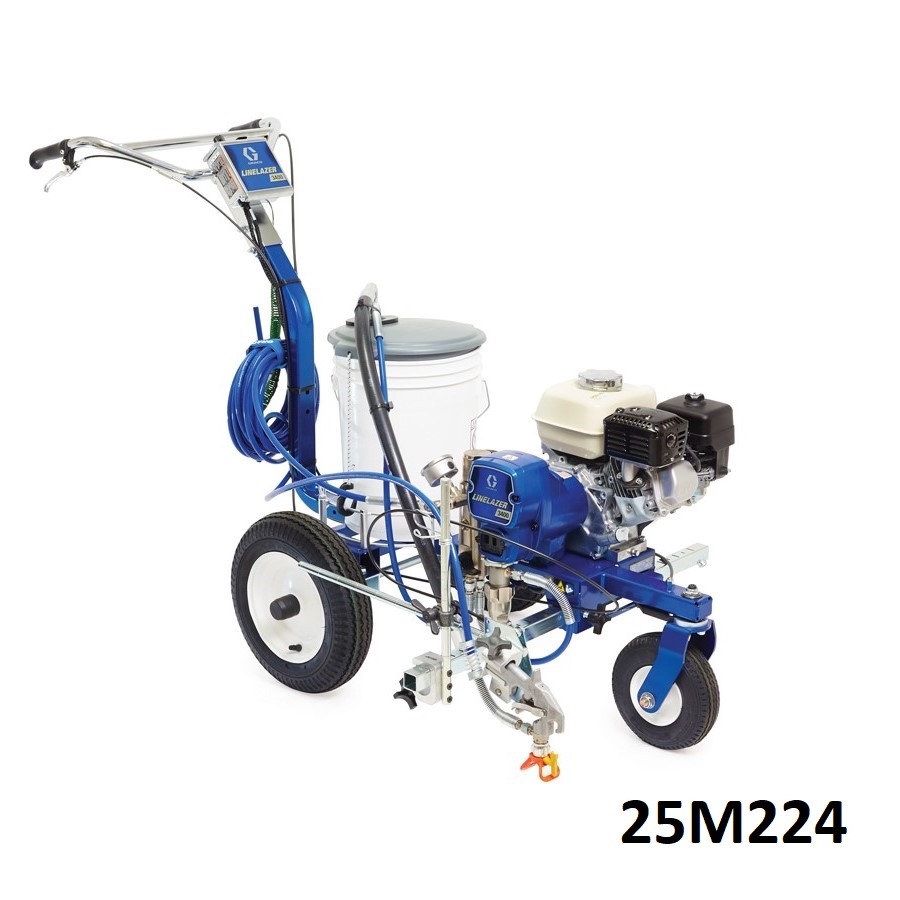

The LineLazer 3400 is the proven performer for your restripe jobs. As the preferred choice for 1-gun professional performance, the LineLazer 3400 is perfect for small parking lots, mini malls, seal coating contractors, schools and park and recreation departments.

Introduced in 2004, the original FieldLazer S100 was the first walk-behind field marker utilizing proven Graco high-pressure airless paint spray technology. It is now recognized by field marking professionals as one of the top walk-behind field marking machines available.

LineLazer 3400 Features:

  • Newly designed frame is 3 inches longer — adding stability and improved tracking which results in improved line quality
  • New EasyMark gun adjustment system allows for quick movement of gun and guide marks for perfect gun alignment every time
  • Adjustable handle bar design allows for optimal ergonomics and reduced vibration for all-day striping comfort with less fatigue
  • Rear mount hose wrap provides easy on/off for those demanding stencil jobs
  • Easy reach operator controls are located on the handle bars allowing adjustments to be made without stopping
  • Contractor preferred Honda engine with excellent power and proven reliability
  • Endurance pump provides industry-best performance in this field-proven design
  • With hardened steel gears, advantage drive is the longest lasting drive in the industry
  • EasyOut pump filter system with inside-out filtering prevents tip clogs and ensures paint quality
  • Electronic pressure control with accurate, tight tolerance system provides excellent line quality
  • Chromex pump rod has long life rod treatment for the most demanding materials and is four times harder than ordinary chrome
  • Front swivel wheel provides easier “up to the curb” parking lot striping and hard-to-do curves


FieldLazer S100 Features:

  • Graco high-pressure airless paint spray technology produces bright lines from every angle, coats both sides of grass blades in a single pass, and allows for reduced paint consumption vs. low pressure systems
  • Durable light-weight design for years of uninterrupted use and at only 80 lbs (36kg) it's easy to load and unload
  • Easy reach operator controls are located on the handlebar for ease of use and allows adjustments to be made without stopping
  • Exclusive tall-wheel cart design rolls easily over ruts and cleat marks, resulting in less operator fatigue and straighter lines
  • Fully adjustable spray guides make line width adjustments fast and easy without tools from 2 to 12 inch lines, and are designed to deliver long, straight lines
  • 5 gallon bucket-ready design eliminates the hassle of cleaning tanks or pots
  • Fold-down handle allows the FieldLazer to fit into minivans, SUVs, or even pickups with toppers

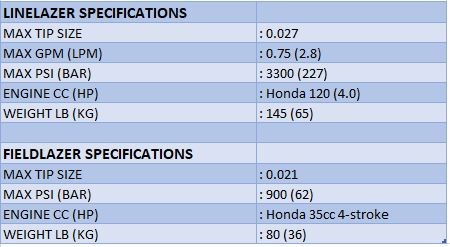

Technical Specifications
