Speedo Marine (Pte) Ltd.

Coating Thickness Gauge ( Inspection & Measuring )
Product Code & Goods Description
220
Chargeable weight: 0.20 KG
Dimensions : 150 x 80 x 35 CM

DESCRIPTION:

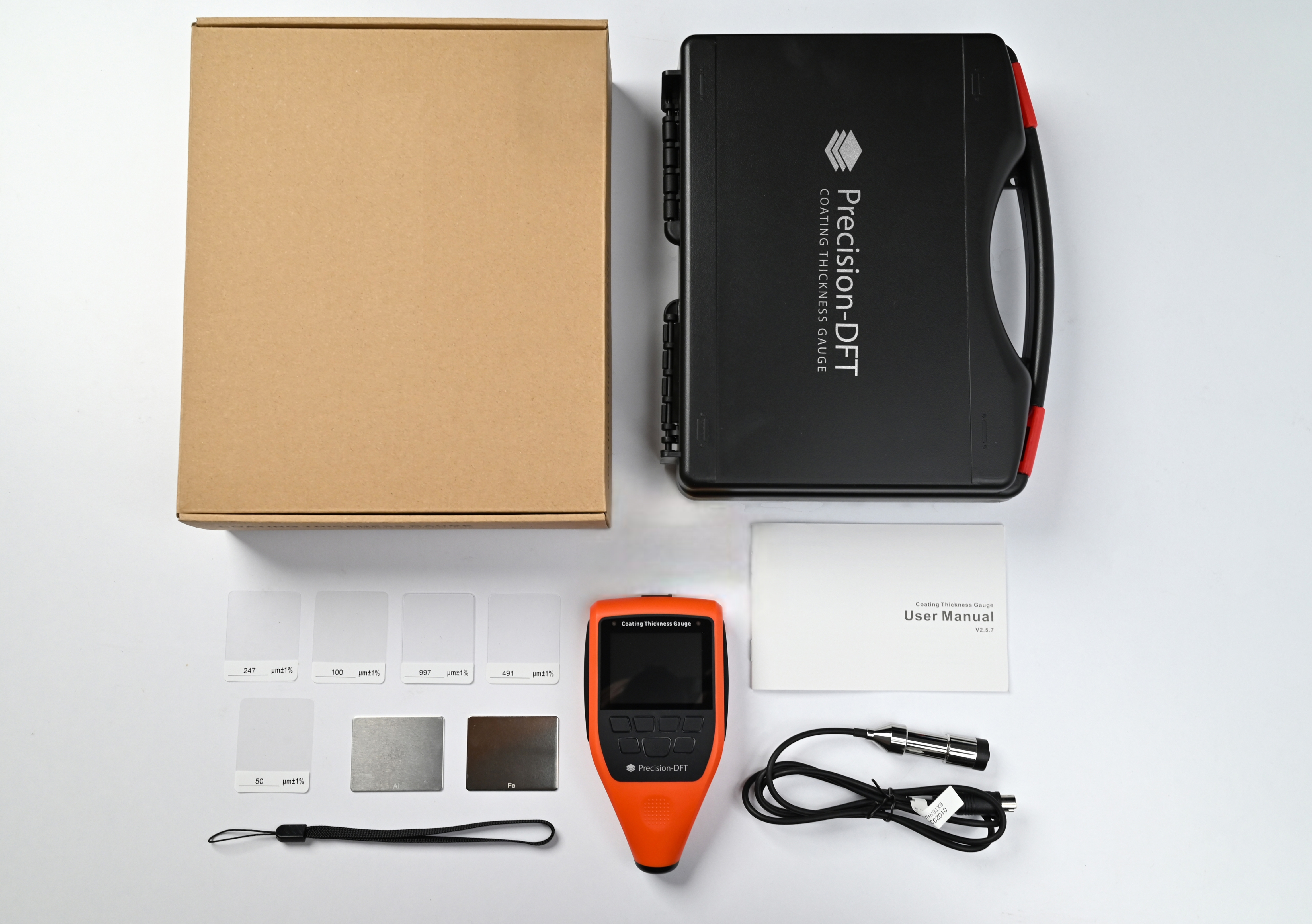

This series of thickness gauge can nondestructive measure the thickness of non-conductive coatings on metal surfaces and non-ferromagnetic metal coatings on ferromagnetic metals (e.g. iron, nickel, cobalt, etc.), including measuring the thickness of iron, stainless steel surface paint or galvanized layer, measuring the thickness of aluminum,copper surface paint or plastic film. EC-777 is with a Internal probe, magnetic induction and eddy current effect integrated probe, measuring range is 0~2000μm and measuring accuracy is ±(2%+1μm), resolution is up to 0.1μm. EC-777 is highly anti-interference and can work in complex electromagnetic field. During measurement, the user needs to quickly attach the end of probe to the surface of the object being measured, during the process of the probe shrinking into the instrument, the instrument can automatically distinguish the properties of the substrate and measure the thickness of the coating (plating) layer. The measurement results can be sent to the APP in real time by Bluetooth. Besides, with big memory card, the gauge record data automatically. And records could be sent to computer by USB. EC-777 has a strong data processing ability, can display a variety of statistics map and data, and can indicate and alert the over-limit situation. The instrument integrates AI technology and adds the functions of environment self-adaptation and self-protection. The instrument is with a simple standardized menu interface on the large color screen. The realization of many advanced technology and schemes has greatly enhanced the user’s sense of human-computer interaction experience.

Quantity
Technical Specifications

FEATURES:

• Double principle in one, ruby probe

• 2.4 inch color screen

• With Bluetooth and APP function • Car or general mode

• High resolution 0.1μm

• High accuracy ±(2%+1μm)

• Measuring range is 0~2000μm
(other ranges can be customized)

• Statistic analysis of data

• Standardized menu interface

• Display a curve, bar chart or trend chart

• USB to computer

• Support zero calibration and multi-point calibration

• External probe is optional (EC-777E)

• The maximum speed is 2 times/s

• Self-adaptive back light brightness

• Automatic rotation screen

• Sound volume adjustable

• Red LED alarm, blue and green LED
status reminder

• Auto power-off • Battery Protection




APPLICATION:

• Car paint thickness detection

• Ship manufacturing

• Electroplating

• Mental anti-rust treatment

• Film thickness detection

• Metal parts processing
