Binks Airless Spray Pump
Product Code & Goods Description
3203
Chargeable weight: N/A
Dimensions : N/A

The standard features of Binks airless pumps position them as the premier choice for high speed surge free paint delivery. Binks pumps are a completely new design in pump technology utilising patented magnetic detents to dramatically enhance smooth pump operation and change over with no pulse to provide the best “surge free” paint delivery for the perfect finish.

These pumps operate at 32:1 ratio delivering 4 litres per minute output (max) with self-adjusting spring loaded packings for longer pump working life cycle and reduce the need for costly maintenance and downtime. The fluid sections and all wetted parts are constructed from the highest quality stainless steel for best fluid compatibility whilst providing a long and durable working life. Pumps are fitted with an operator friendly control panel and include a quality easy to clean fluid filter as standard for reduced tip blockages.

Key Features:

  • Magnetic detent (patent) for quick stroke change over with no pulse
  • Fully stainless steel wetted parts and fluid section
  • Anti stall no ice design
  • Large sight glass for visual packing inspection
  • Solvent cup keeps packings well lubricated
  • Self-adjusting spring loaded packings
  • Divorced pump design – zero potential for paint to enter air motor
  • Durable design for heavy duty long working life
  • CE marked and fully ATEX approved

Typical Applications:

Joinery/furniture & woodworking, skips and dumpsters, off road vehicles, metal fabrications, truck/trailer & chassis makers, aerospace & aviation, plus many others...

Suitable for materials such as:

Solvent or waterborne coatings, wood-stains, lacquers & varnishes, primers, sealers & catalysed lacquers, enamels & polyurethanes, plus many others…

Quantity

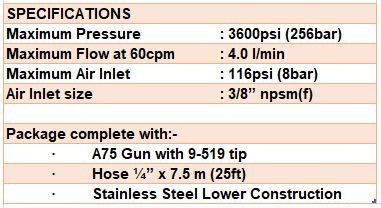

Technical Specifications

Maximum Pressure: 3600psi (256bar)

Maximum Flow at 60cpm: 4.0 l/min

Maximum Air Inlet: 116psi (8bar)

Air Inlet size: 3/8” npsm(f)

Package complete with:-

  • A75 Gun with 9-519 tip
  • Hose ¼” x 7.5 m (25ft)
  • Stainless Steel Lower Construction
