Speedo Marine (Pte) Ltd.

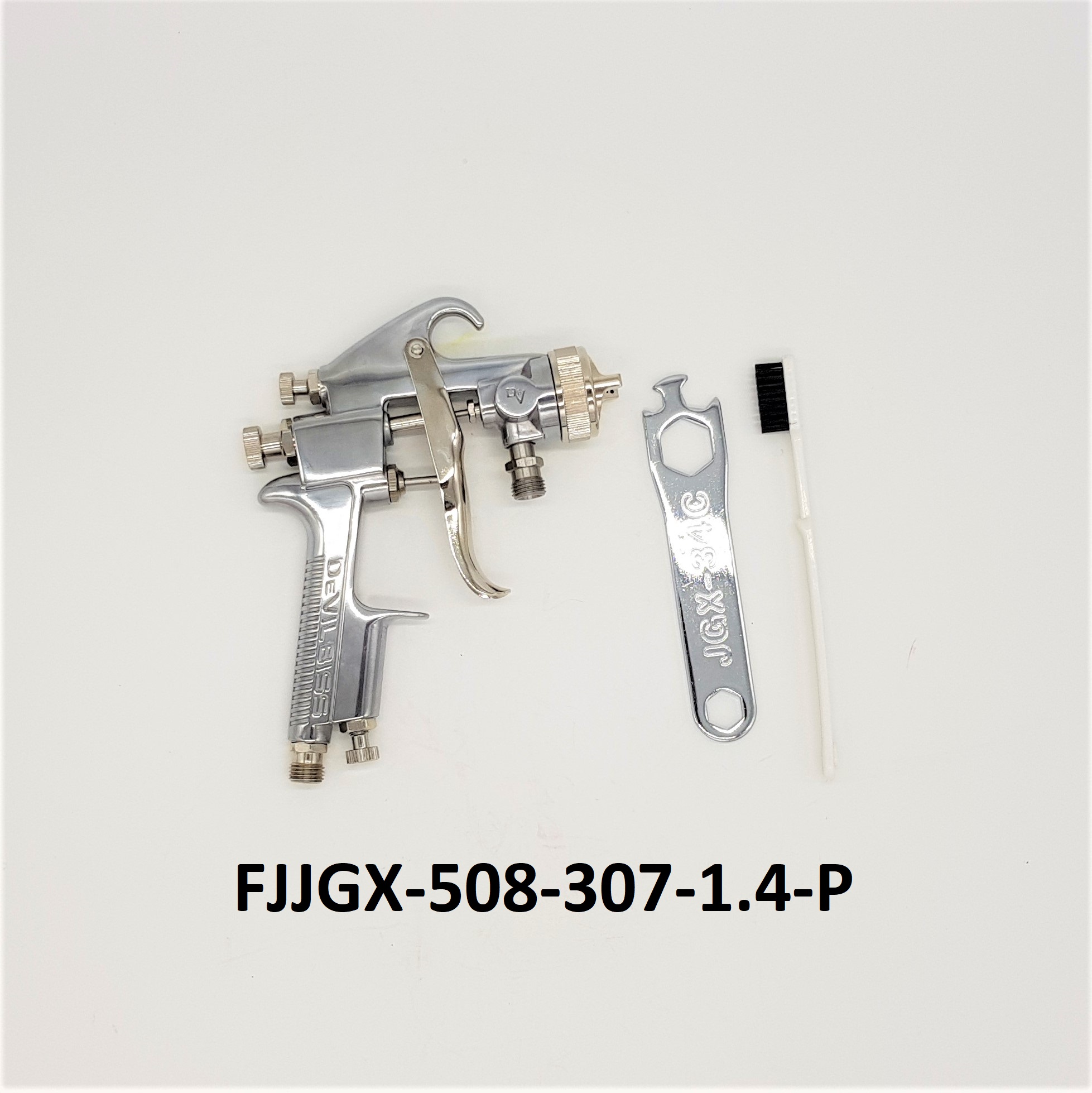

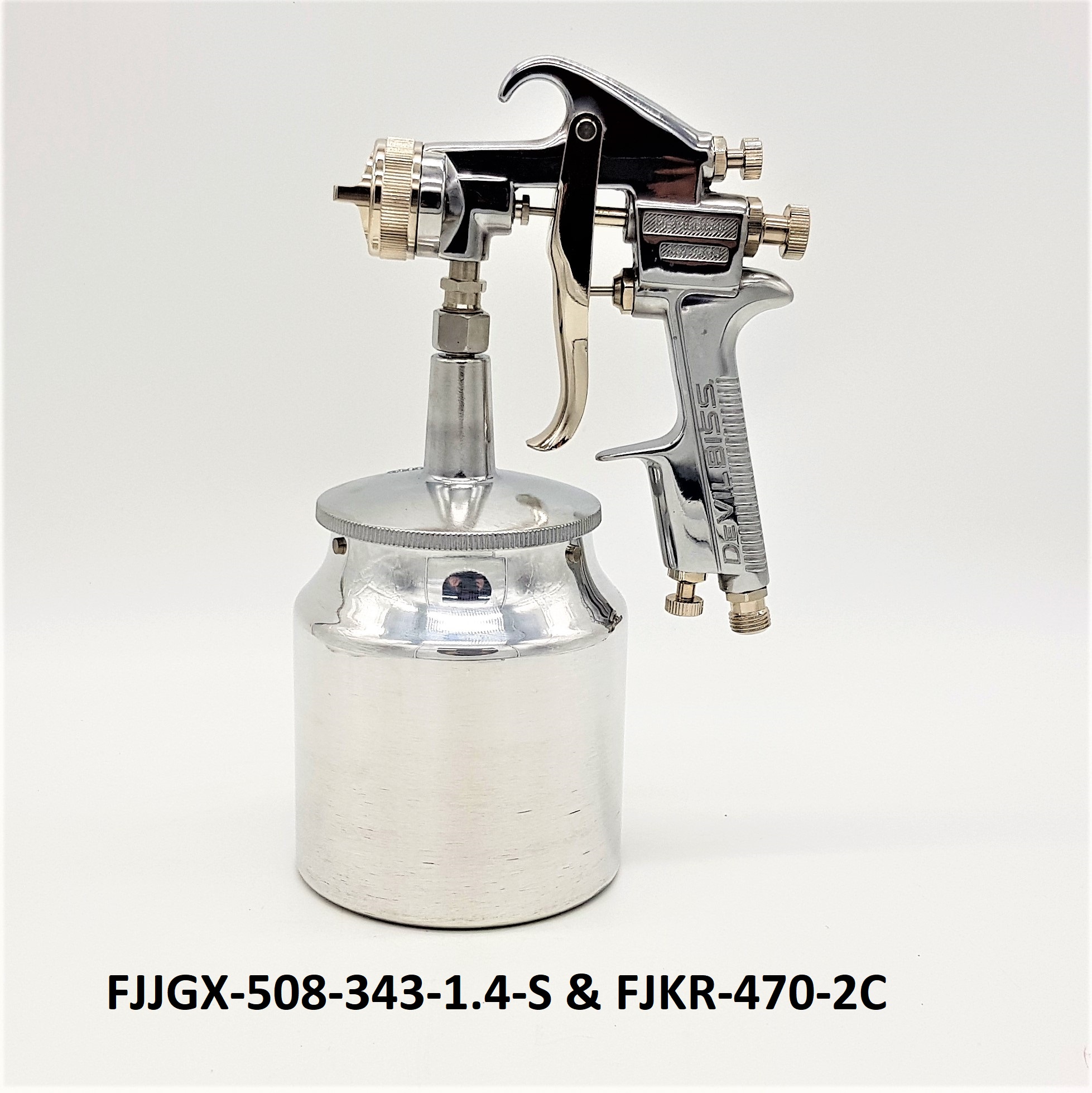

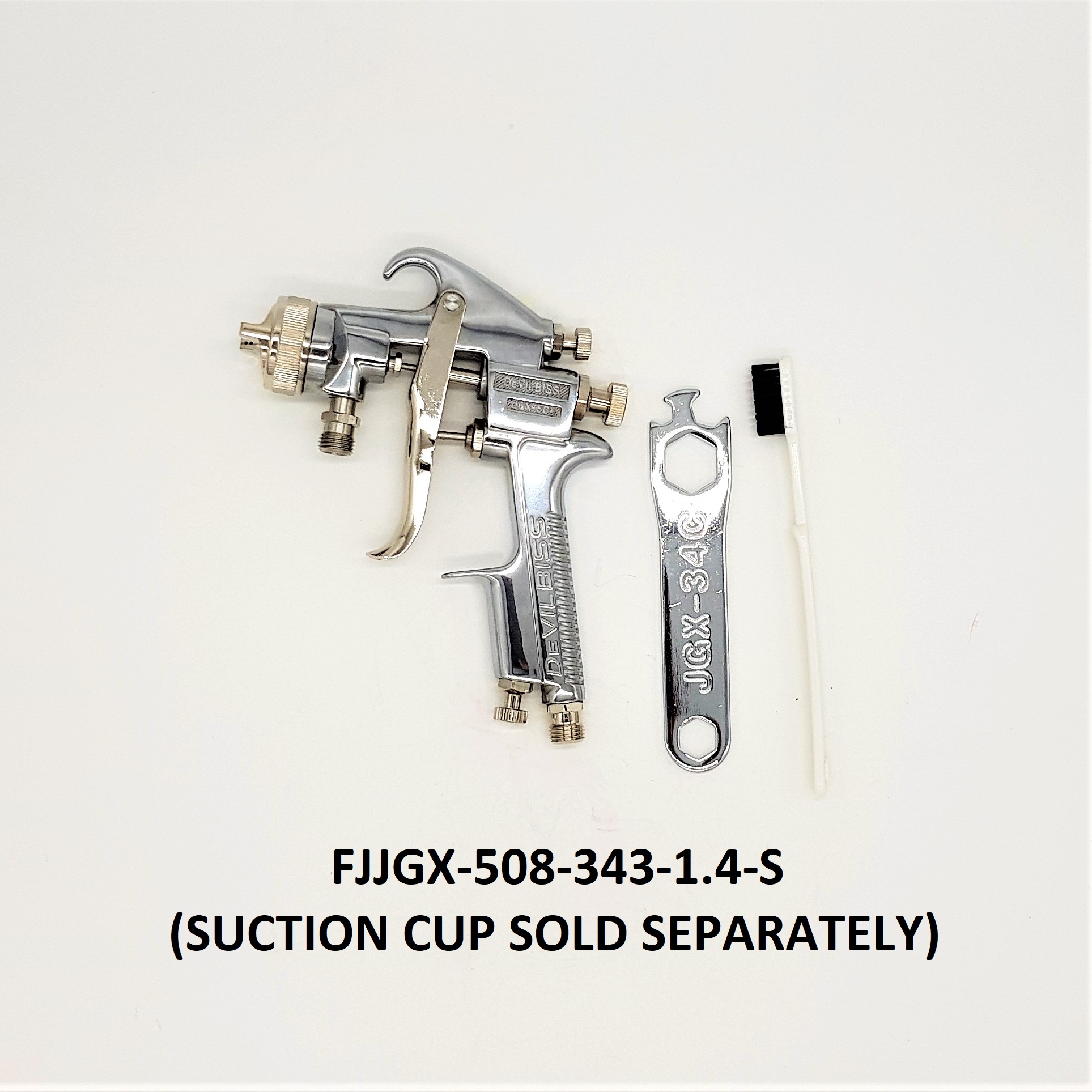

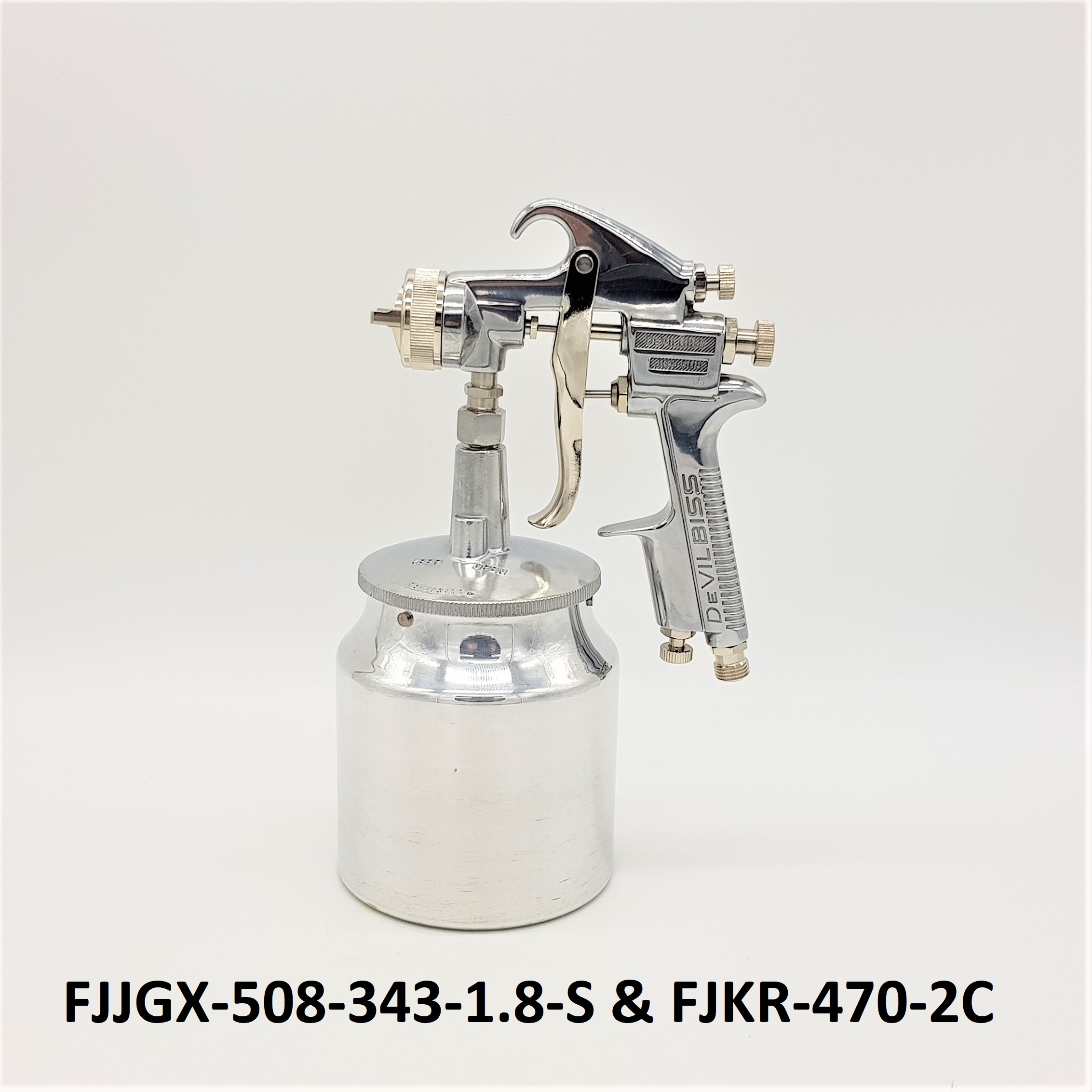

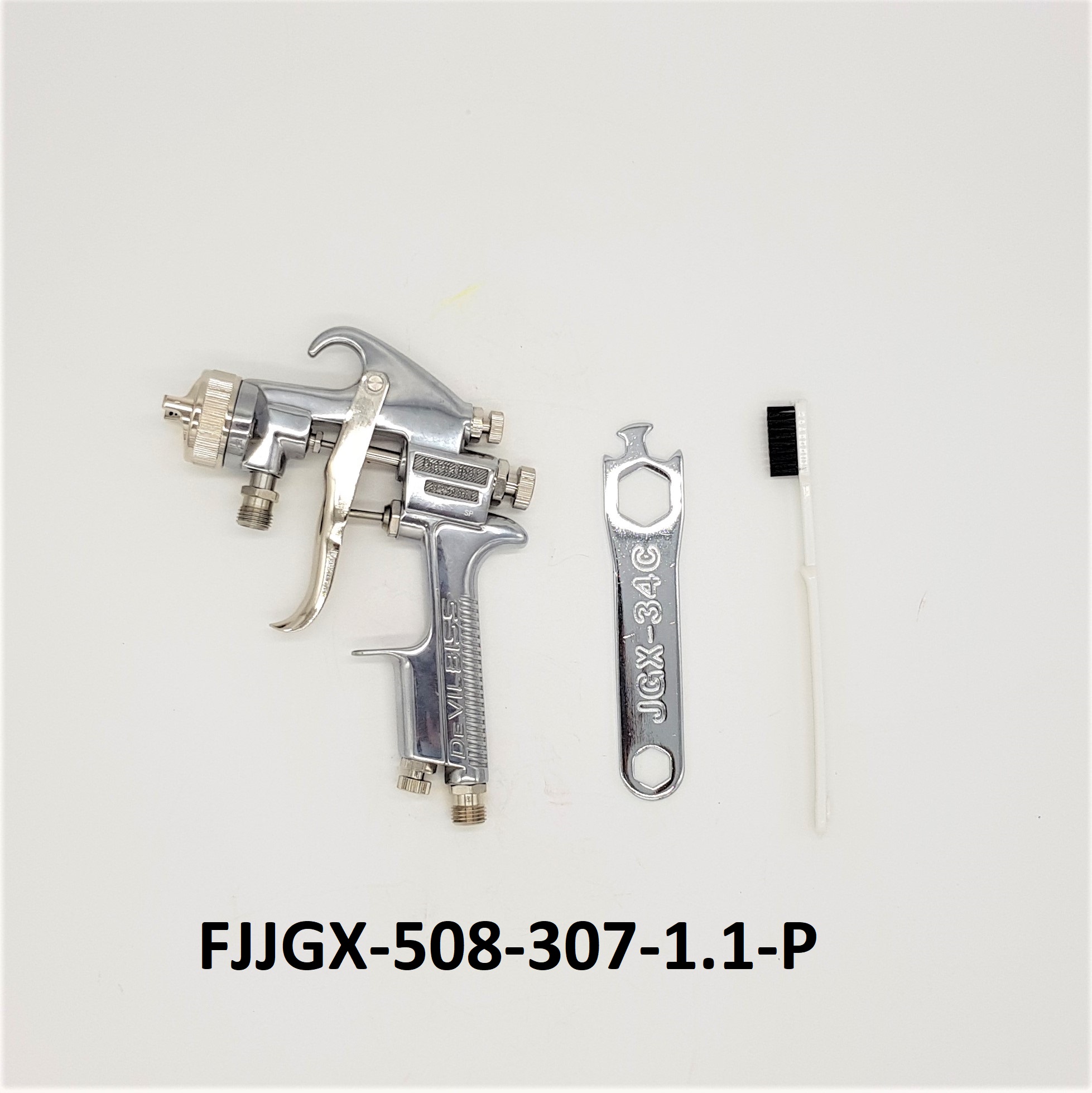

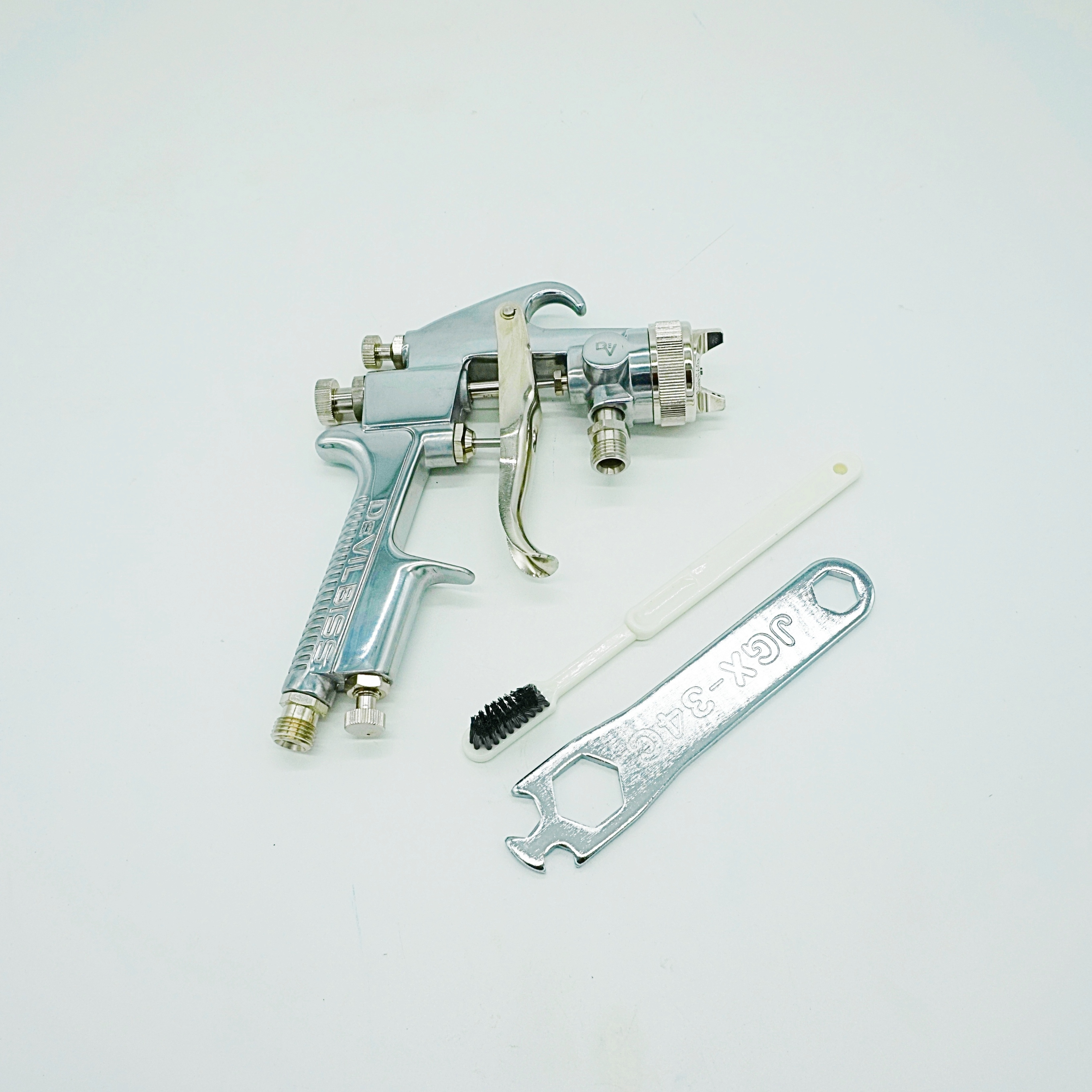

Model 508 Air Spray Gun
Product Code & Goods Description

Features:

  • Lightweight, compact, and easy to operate
    JGX gun is built at a light weight of 415g featuring the finest atomization. It provides a quality finish with both metallic & pearl paints.



  • Stainless steel fluid passage
    The fluid passage is made of stainless steel, compatible with all types of paints including waterborne paints. The fluid tip and needle are all made of stainless steel.



  • Air cap for the finest atomization
    Perfect alignment between the air cap and the fluid tip is maintained through DEVILBISS' patented Ball & Cone principle, therefore providing excellent atomization as well as consistent and uniform spray patterns.



  • Air adjustment valve on handle
    The air adjustment valve positioned at the air inlet on the gun handle allows the operator easy air adjustment.
Quantity

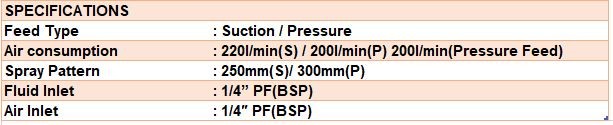

Technical Specifications

Specification: Suction / Pressure Feed

Air consumption: 220l/min(S) / 200l/min(P) 200l/min(Pressure Feed)
Spray Pattern: 250mm(S)/ 300mm(P)
Fluid Inlet: 1/4” PF (BSP)
Air Inlet: 1/4″ PF(BSP)
