Speedo Marine (Pte) Ltd.

Flotech X68:1
Product Code & Goods Description
1965
Chargeable weight: 104.000 Kg
Dimensions : 81.000 x 68.000 x 128.000 cm
Quantity

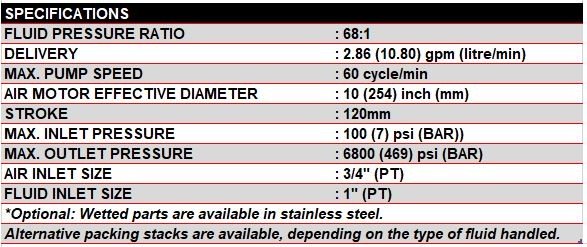

Technical Specifications

FLUID PRESSURE RATIO

68:1

DELIVERY

2.86 (10.80) gpm (litre/min)

MAX. PUMP SPEED

60 cycle/min

AIR MOTOR EFFECTIVE DIAMETER

10 (254) inch (mm)

STROKE

120mm

MAX. INLET PRESSURE

100 (7) psi (BAR))

MAX. OUTLET PRESSURE

6800 (469) psi (BAR)

AIR INLET SIZE

3/4" (PT)

FLUID INLET SIZE

1" (PT)



Optional: Wetted parts are available in stainless steel.

Alternative packing stacks are available, depending on the type of fluid handled.
