Speedo Marine (Pte) Ltd.

Flotech X56:1
Product Code & Goods Description
1965
Chargeable weight: 104.000 Kg
Dimensions : 70.000 x 66.000 x 129.000 cm

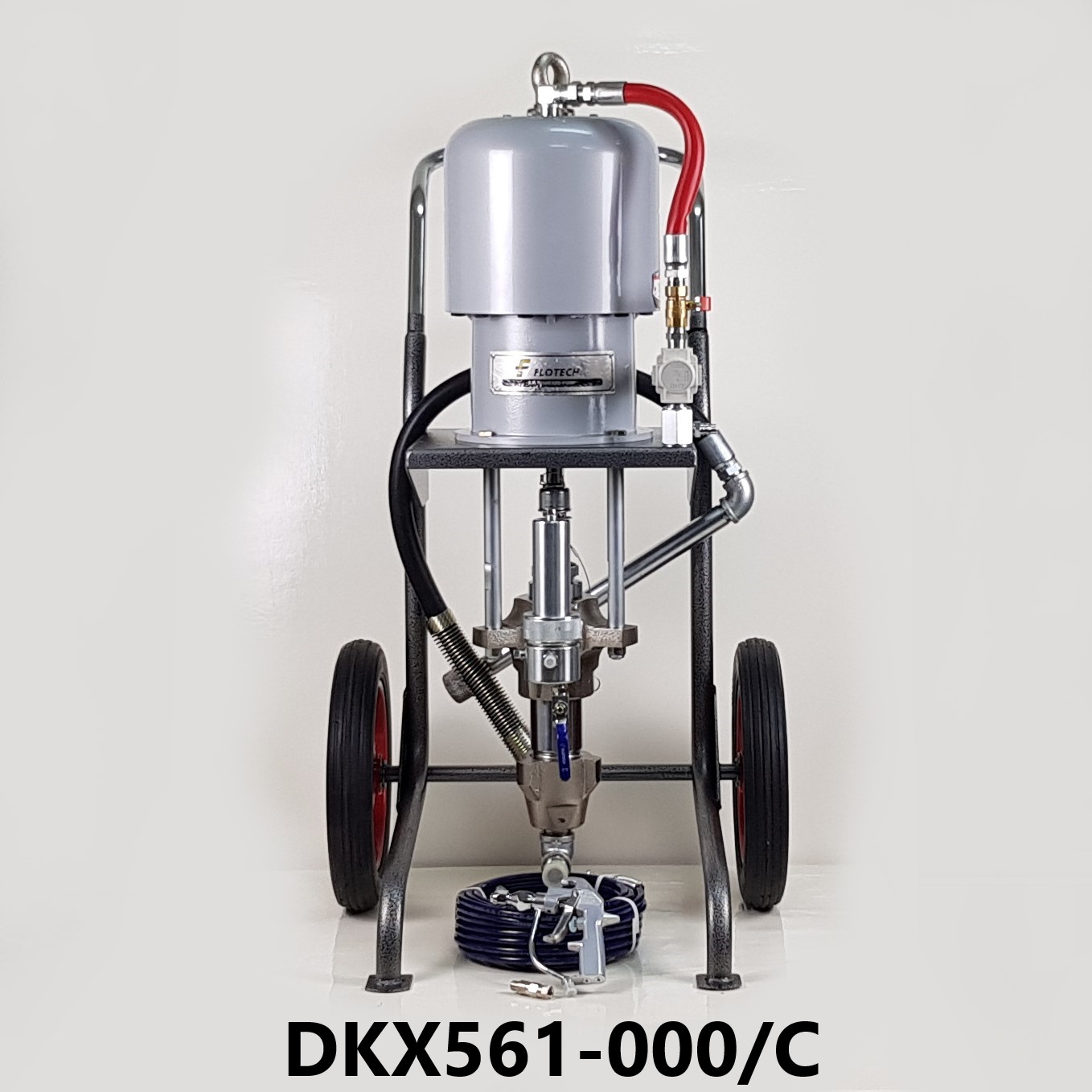

The Flotech Airless X56:1 Spray Pump is ideal for applications to do with roofing, construction, metal structures, high viscosity coating, and protective coating, and typically handles fluids such as epoxy primers, alkyds, tar-epoxies, paints for corrosion control etc.

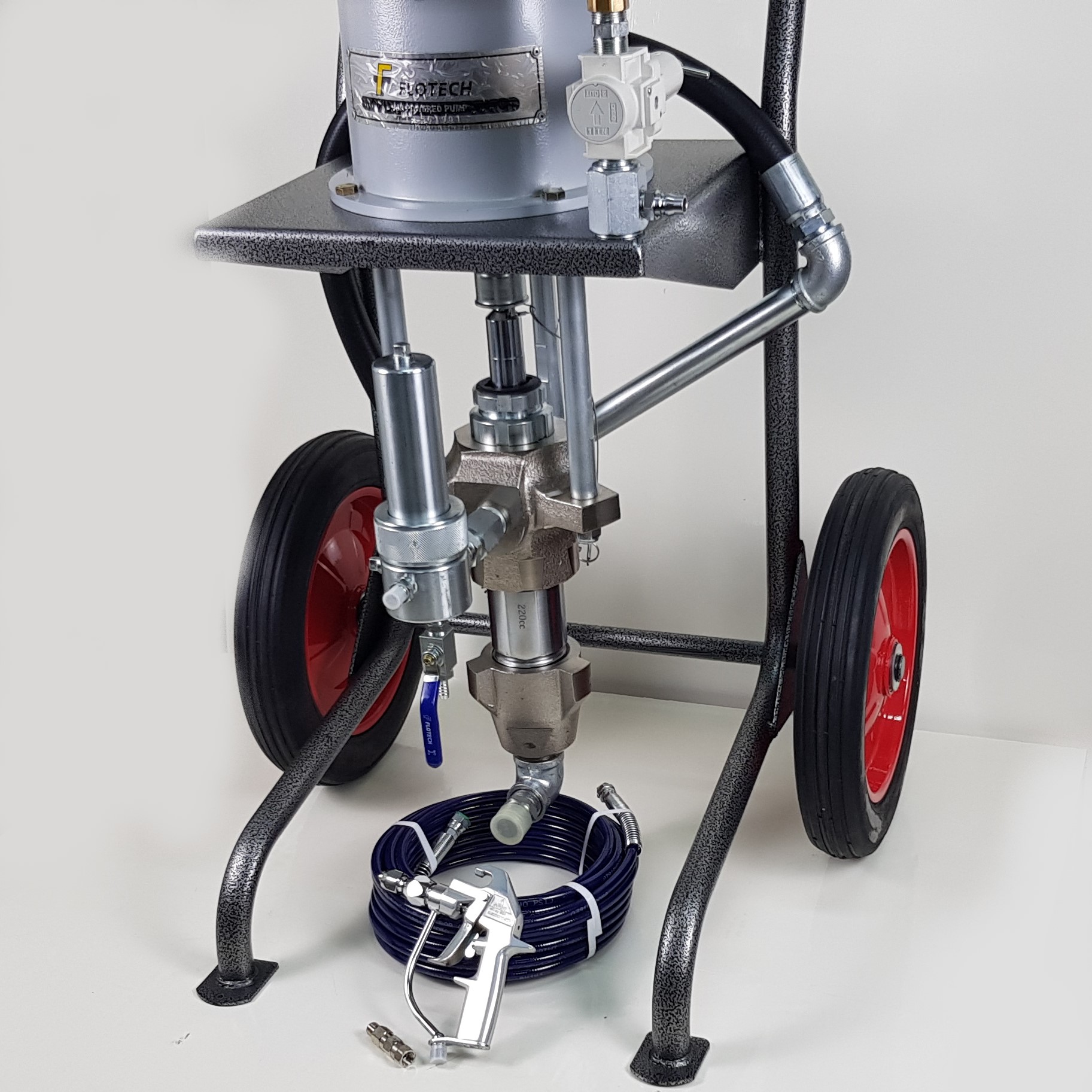

The Flotech Spray Pump X56:1 Complete Package includes:

  • S-Plus Gun C/W G269517 Tip & Tip Filter 60#
  • Gun Swivel

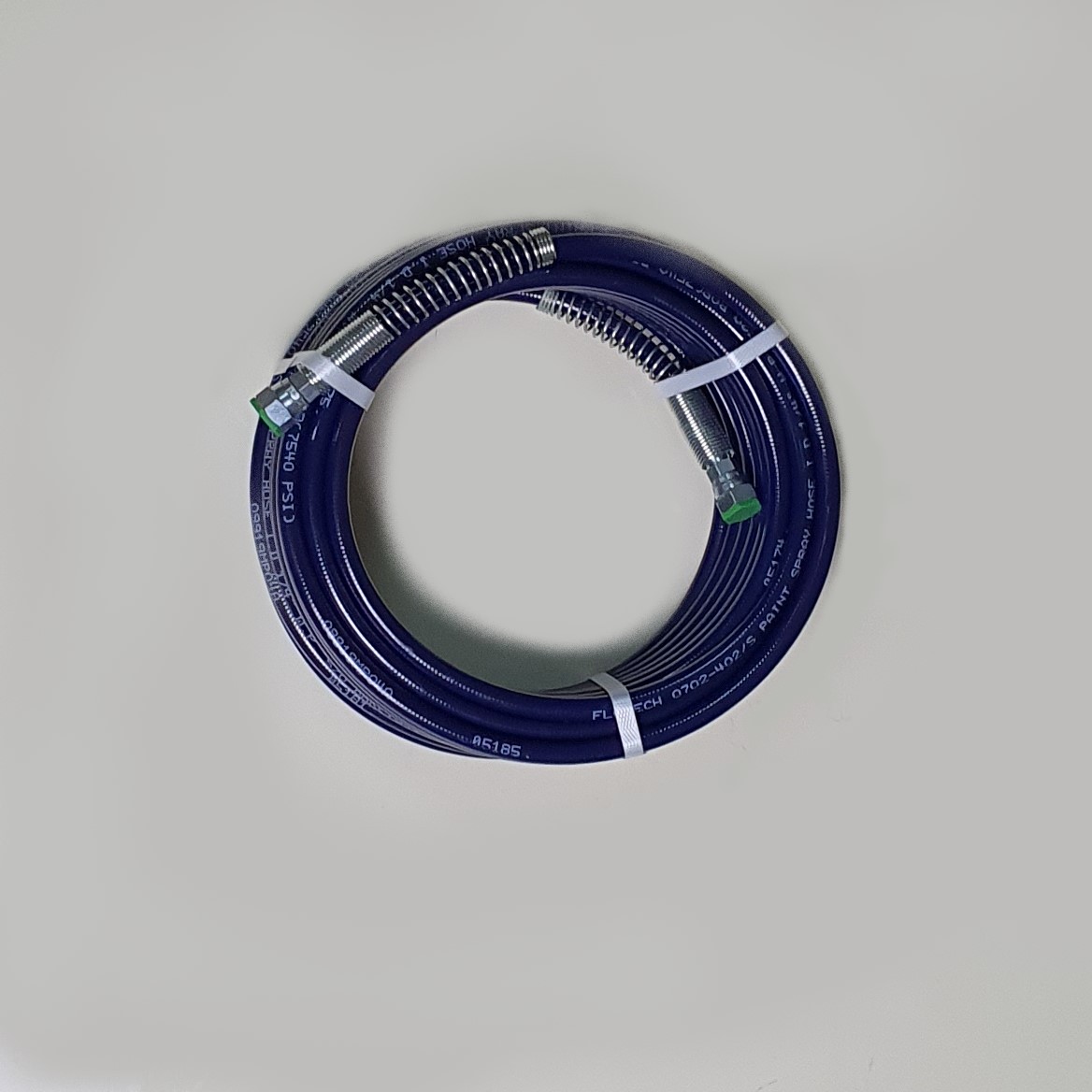

  • 1/4" x 50’ Paint Hose (3300 PSI)
Quantity

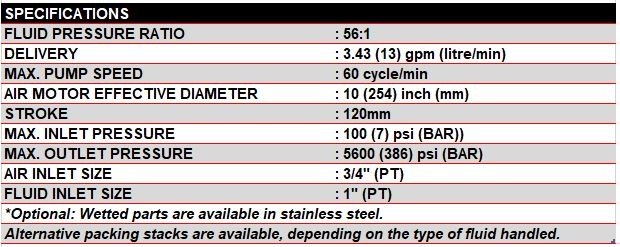

Technical Specifications

FLUID PRESSURE RATIO

56:1



DELIVERY

3.43 (13) gpm (litre/min)



MAX. PUMP SPEED

60 cycle/min



AIR MOTOR EFFECTIVE DIAMETER

10 (254) inch (mm)



STROKE

120mm



MAX. INLET PRESSURE

100 (7) psi (BAR))



MAX. OUTLET PRESSURE

5600 (386) psi (BAR)



AIR INLET SIZE

3/4" (PT)



FLUID INLET SIZE

1" (PT)





Optional: Wetted parts are available in stainless steel.

Alternative packing stacks are available, depending on the type of fluid handled.
