Flotech 30:1
Product Code & Goods Description
1140
Chargeable weight: 36.000 Kg
Dimensions : 57.000 x 52.000 x 93.000 cm

The Flotech Airless 30:1 Spray Pump is ideal for applications to do with construction, metal structures, lacquer, varnish, furniture, protective coating, ships, and maintenance, and typically handles fluids such as enamels, polyurethane coating, normal coating etc.

The Flotech Spray Pump 30:1 Complete Package includes:

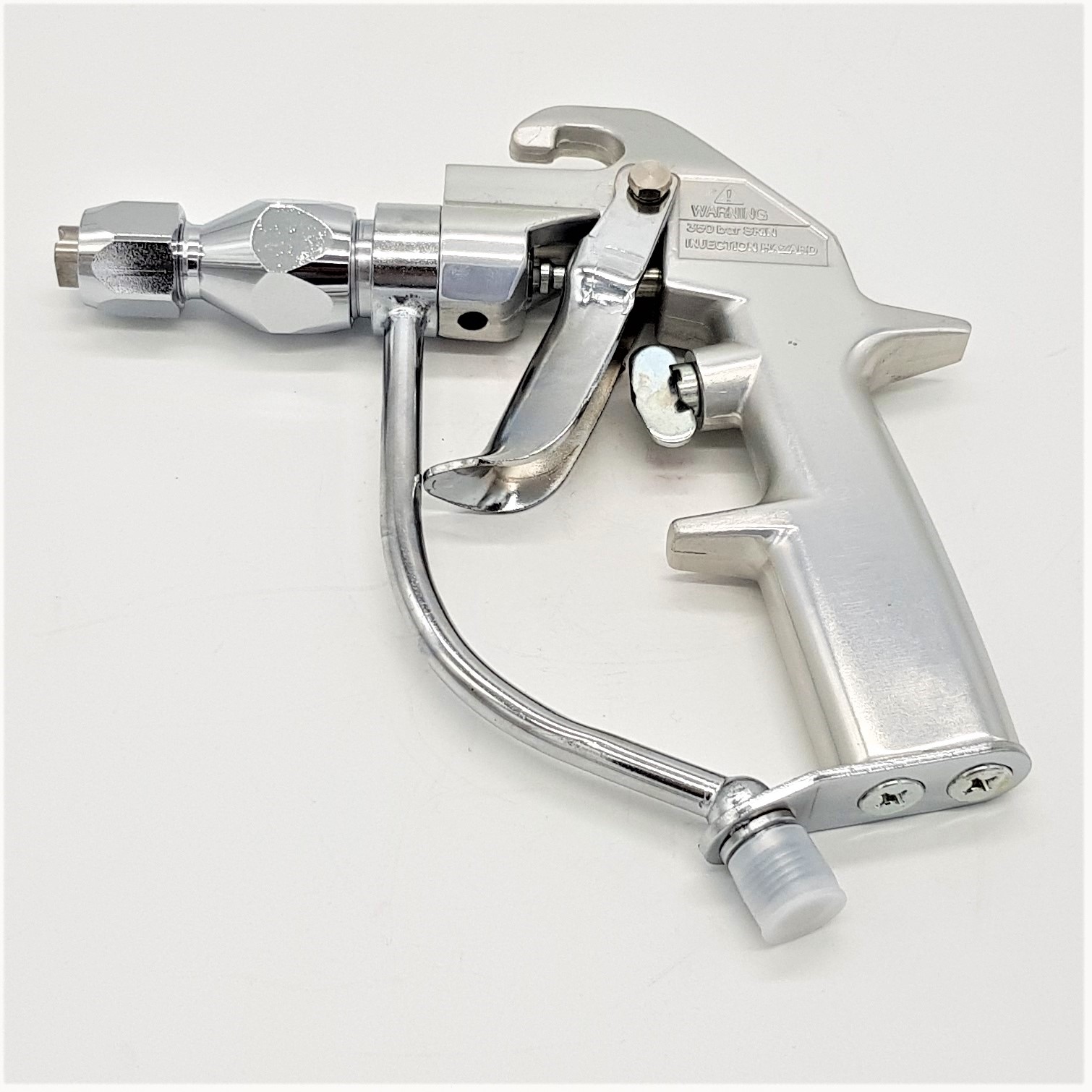

  • S-Plus Gun C/W G269517 Tip & Tip Filter 60#
  • Gun Swivel

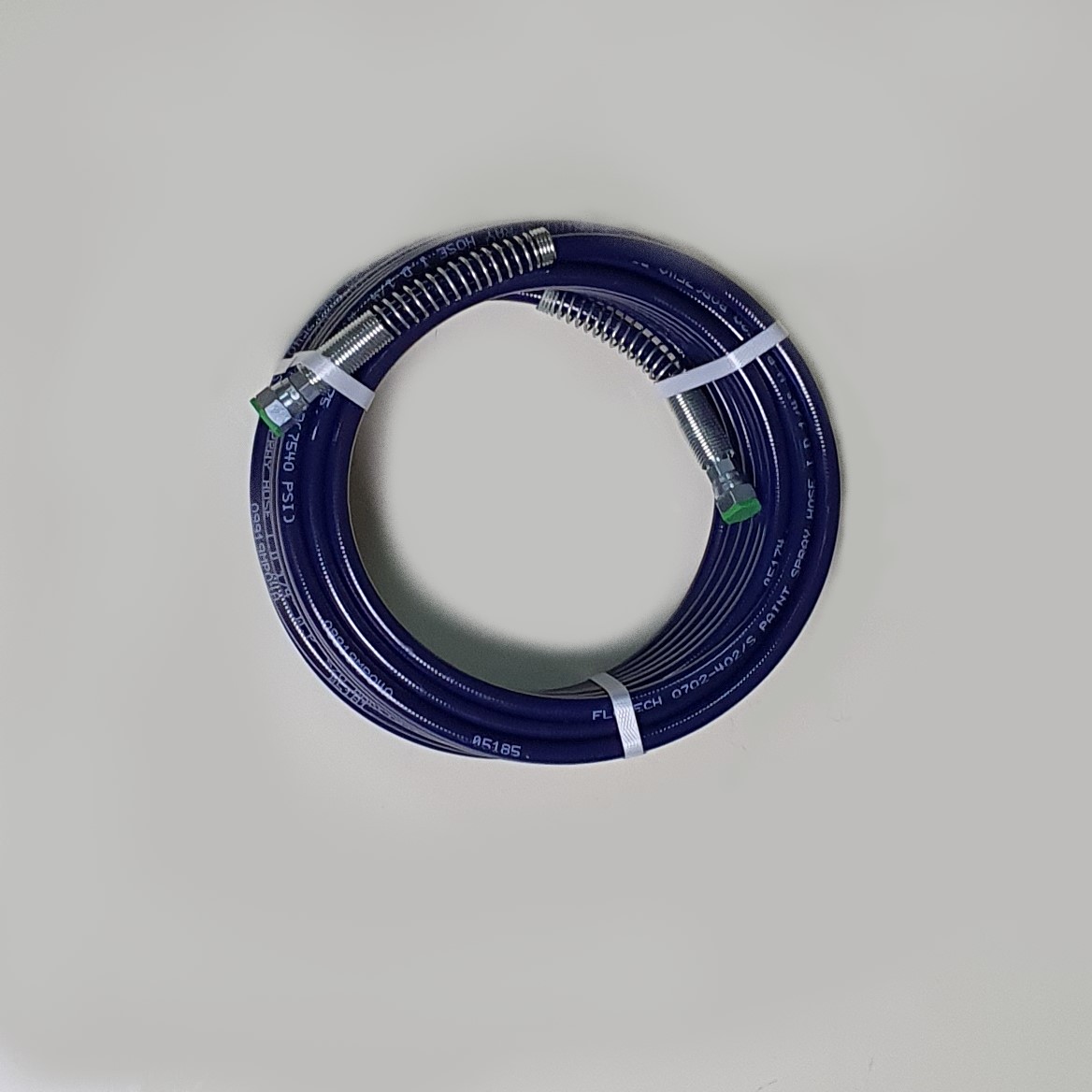

  • 1/4" x 50’ Paint Hose (3300 PSI)
Quantity

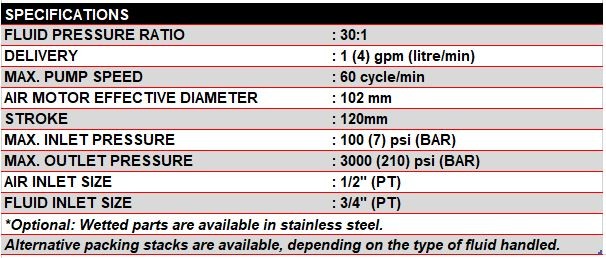

Technical Specifications

FLUID PRESSURE RATIO

30:1

DELIVERY

1 (4) gpm (litre/min)

MAX. PUMP SPEED

60 cycle/min

AIR MOTOR EFFECTIVE DIAMETER

102 mm

STROKE

120mm

MAX. INLET PRESSURE

100 (7) psi (BAR)

MAX. OUTLET PRESSURE

3000 (210) psi (BAR)

AIR INLET SIZE

1/2" (PT)

FLUID INLET SIZE

3/4" (PT)



*Optional: Wetted parts are available in stainless steel.

Alternative packing stacks are available, depending on the type of fluid handled.
