Automatic Gun
Product Code & Goods Description

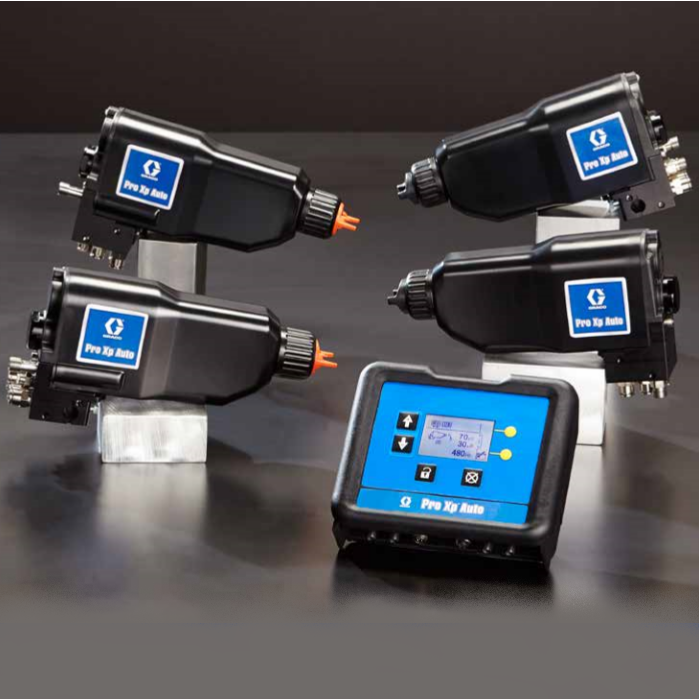

Get the spray performance and transfer efficiency of the manual Pro Xp guns in an automatic version. They’re smaller, lighter and designed to maximize your profits. Every automatic Pro Xp gun is tested and delivered with a certificate indicating it meets all of Graco’s requirements for spray pattern, mechanical performance and electrical performance so you know you’re getting a quality product.

The Pro Xp Auto smart gun models connect right to the control module so you can see exactly how your gun is performing 24/7. With the control module, you can easily change the kV setting to optimize spray parameters for less touch up and a better finish quality on your parts.

Note: Electrostatic guns do not include a control module or fiber optic cable, items have to be ordered separately.

Features:

  • Versatile product line gives you more models to choose from and greater spraying flexibility with air spray, air assist and waterborne guns
  • Manifold style fits almost any systems requirement - back manifold is ideal for stationary and reciprocator systems and bottom manifold is ideal for robot mounting
  • 85 kV power supply and internal power so there’s no electrical cord to worry about damaging or replacing
  • Higher transfer efficiency equals less waste, saving you money on material
  • Made in the USA
  • Durable components reduce cost of ownership, supported by a three-year warranty
Quantity
Technical Specifications

Pro Xp Auto Air Spray Gun



US

Metric

Maximum fluid working pressure

100 psi

0.7 MPa, 7 bar

Maximum working air pressure

100 psi

0.7 MPa, 7 bar

Maximum fluid operating temperature

120oF

480C

Paint resistivity range

3 megohm/cm to infinity. For a table of electrostatic results at different resistance levels see, Check Fluid Resistivity, page 15 of manual.

Short circuit current output

125 microamperes

Gun Weight (Approximate)

2.6 lb

1.2 kg

Air Consumption

Required turbine air flow

6 scfm

170 l/min

Typical total air flow with 24N477 air cap at

18 scfm

510 l/min

30 psi (2 bar) atomizing air and fan air inlet





pressure





Voltage Output

Standard Models

85 kV

Smart Models

40-85 kV

Noise (dBa)

Sound Power (measured per ISO Standard

at 40 psi: 90.4 dB(A)

at 0.28 MPa, 2.8 bar: 90.4 dB(A)

9216)

at 100 psi: 105.4 dB(A)

at 0.7 MPa, 7 bar: 105.4 dB(A)

Sound Pressure (measured 1 m from gun)

at 40 psi: 87 dB(A) at 100 psi: 99 dB(A)

at 0.28 MPa, 2.8 bar: 87 dB(A) at 0.7 MPa, 7 bar: 99 dB(A)

Inlet/Outlet Sizes

Turbine air inlet fitting, left-hand thread

1/4 npsm(m)

Atomizing air inlet fitting

5/16 in. OD nylon tube (8 mm)

Fan air inlet fitting

5/16 in. OD nylon tube (8 mm)

Cylinder air inlet fitting

5/32 in. OD nylon tube (4 mm)

Fluid inlet fitting

1/4-18 npsm(m)

Materials of Construction

Wetted Parts

Stainless Steel, Nylon, Acetal, Ultra-High Molecular Weight Polyethylene, Fluoroelastomer, PEEK, Tungsten Carbide, Polyethylene
