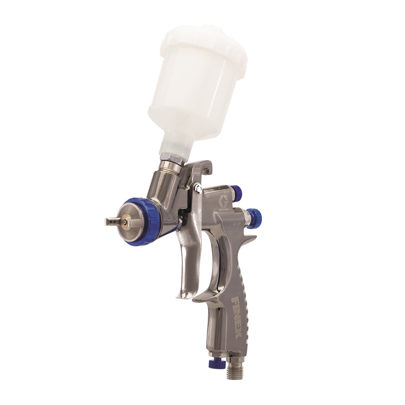

Finex Air Spray Gun, Mini
Product Code & Goods Description

Well-balanced and lightweight, the Finex gun design offers a more affordable way to spray. Available in either pressure feed or gravity feed guns options, and HVLP or conventional technologies.

Features:

  • Aircaps optimized for high quality spray performance
  • Lightweight, ergonomic gun
  • Lightest trigger pull in its category
  • Integrated air inlet adjustment (cheater) valve
  • Durable stainless steel trigger comes standard on all Finex gun models
  • Available in a wide variety of needle/nozzle sizes



Quantity
Technical Specifications

Maximum air inlet pressure . . . . . . . . . . . . . . . . . . . . . . 100 psi (0.7 MPa, 7 bar)

Maximum fluid working pressure . . . . . . . . . . . . . . . . . . 100 psi (0.7 MPa, 7 bar)

Gravity Feed:

Maximum HVLP inbound air pressure . . . . . . . . . . . 29 psi (0.2 MPa, 2 bar)*

Pressure Feed:

Maximum HVLP inbound air pressure . . . . . . . . . . . 24 psi (0.17 MPa, 1.7 bar)*

Air consumption

Mini HVLP Gravity. . . . . . . . . . . . . . . . . . . . . . . . . . . 7.0 SCFM at 29 psi (0.2 MPa, 2.0 bar)

Conventional Gravity. . . . . . . . . . . . . . . . . . . . . . . . . 9.5 SCFM at 43 psi (0.3 MPa, 3.0 bar)

HVLP Gravity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.5 SCFM at 29 psi (0.2 MPa, 2.0 bar)

HVLP Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11.8 SCFM at 24 psi (0.17 MPa, 1.7 bar)

Conventional Pressure . . . . . . . . . . . . . . . . . . . . . . . 11.0 SCFM at 50 psi (0.34 MPa, 3.4 bar)

Fluid and air operating temperature range . . . . . . . . . . . 32-109°F (0-43° C)

Spray Gun

Air inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4 npsm (R1/4-19)

Fluid inlet (pressure feed) . . . . . . . . . . . . . . . . . . . . . 3/8-18 npsm (R3/8-19)

Wetted parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Aluminum, stainless steel, engineered

Plastic

* Produces 10 psi (0.07 MPa, 0.7 bar) spraying pressure at aircap.
