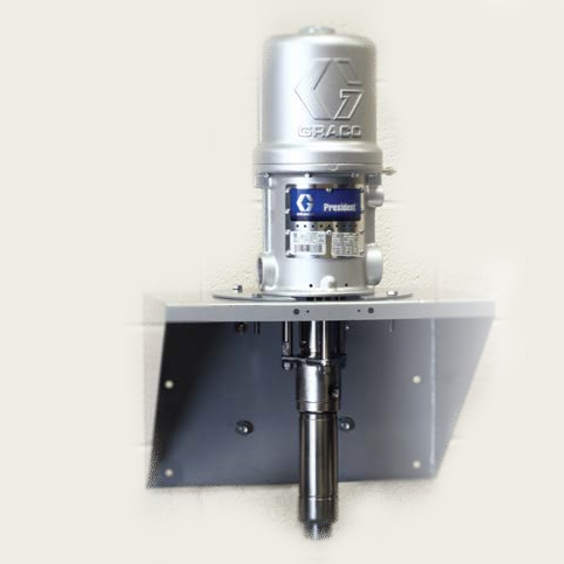

2 Ball Pumps (Monark)
Product Code & Goods Description

Graco 2-ball piston pumps are durable and have survived the test of time. Standard UHMWPE packings extend the pump life in abrasive applications and Chromex™ coated rods and chrome coated cylinders resist wear and corrosion on parts.

Features:

  • Provides material tracking, system diagnostics and runaway control with DataTrak™, the market’s

first integrated local monitoring system

  • Reliable, low maintenance air motor
  • Positive displacement, 2-ball piston designs for uniform and easily controlled delivery
  • Stainless steel or carbon steel models handle a broad range of paints and coatings
  • Drum and stubby length models available for mounting and application flexibility
  • Designed for improved serviceability with fewer parts, faster repairs and lower cost of ownership
Quantity
Technical Specifications

Model

3:1

4:1

10:1

Output per cycle

630 cc

500 cc

189 cc

Maximum working pressure psi (bar, MPa)

360 (25, 2.5)

400 (28, 2.8)

1800 (124, 12.4)

Maximum air input pressure psi (bar, MPa)

120 (8, 0.8)

100 (7,0.7)

180 (12, 1.2)

Output at 60 CPM gpm (lpm)

10 (37.8)

8 (30.2)

3 (11.3)



Model

15:1

30:1

46:1

Output per cycle

112 cc

62 cc

36 cc

Maximum working pressure psi (bar, MPa)

1800 (124, 12.4)

3600 (250, 25)

4600 (317, 31.7)

Maximum air input pressure psi (bar, MPa)

120 (8, 0.8)

120 (8, 0.8)

100 (7, 0.7)

Output at 60 CPM gpm (lpm)

1.8 (6.8)

1 (3.8)

0.55 (2.1)



Part Number

218763

223186

224350

Model

1.5:1

2:1

5:1

Output per cycle

429 cc

343 cc

157 cc

Maximum working pressure psi (bar, MPa)

180 (12, 1.2)

200 (12, 1.4)

900 (62, 6.2)

Maximum air input pressure psi (bar, MPa)

120 (8,0.8)

100 (7, 0.7)

180 (12.4, 1.2)

Output at 60 CPM gpm (lpm)

6.8 (25.7)

5.4 (20.5)

2.5 (9.4)



Part Number

224343

224345

218956



Model

5:1

5:1

5:1



Output per cycle

157 cc

157 cc

135 cc



Maximum working pressure psi (bar, MPa)

600 (42, 4.2)

900 (62, 6.2)

900 (62, 6.2)



Maximum air input pressure psi (bar, MPa)

120 (8, 0.8)

180 (12.4, 1.2)

180 (12.4, 1.2)



Output at 60 CPM gpm (lpm)

2.5 (9.4)

2.5 (9.4)

2.1 (8.1)













Part Number

239327

223844

223596

237958

Model

15:1

15:1

23:1

23:1

Output per cycle

44 cc

44 cc

27 cc

27 cc

Maximum working pressure psi (bar, MPa)

2700 (186, 18.6)

2700 (186, 18.6)

3450 (238, 23.8)

2760 (190, 19.0)

Maximum air input pressure psi (bar, MPa)

180 (12.4, 1.2)

100 (7, 0.7)

150 (10, 1.0)

120 (8, 0.8)

Output at 60 CPM gpm (lpm)

0.7 (2.6)

0.7 (2.6)

0.4 (1.6)

0.4 (1.6)
