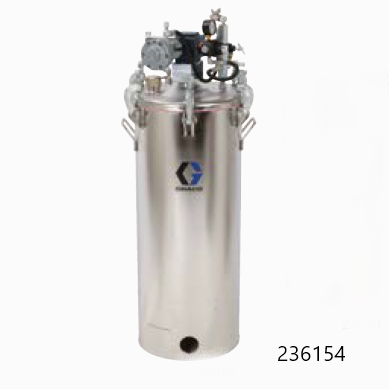

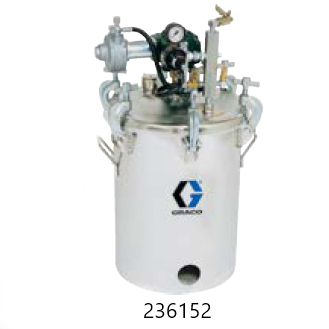

Pressure Tank
Product Code & Goods Description

Designed with electroplated surfaces that prevent debris build-up and keep your operation free of contaminants, Graco pressure pots are precision welded and surfaced. The siphon tube and bottom outlet of the pressure pot allow for different feed methods, and the liners make clean up easy and mess free. They also meet our stringent internal requirements that exceed industry standards such as ASME and FM.

Features:

  • 5 Gallon version ideal for small batches and special colour applications
  • Heavy-duty gear-reduced agitator provides more power for high solids
  • Improved access with a bottom outlet kit reduces material waste
  • Polyethylene tank liners available for quick colour change and easy clean-up
  • Stainless steel construction allows for use with all materials
  • Ideal for infrequent or build to order production
  • Inexpensive, flexible, and easily upgraded to add functionality compared to other systems
Quantity
Technical Specifications

2.5 Gallon Pressure Tank:

Fluid pressure ratio .................................................................... …………..1:1

Maximum fluid outlet pressure ............................... 50 psi (3.5 bar, 0.4 MPa)

Maximum air input pressure..................................... 50 psi (3.5 bar, 0.4 MPa)

Tank capacity.................................................................... ……2.5 gal. (9.5 l)

Air inlet............................................................................... ……..1/4 npt(m)

Fluid outlet........................................................................ …….3/8 npsm(m)

Weight............................................................................... ……..11 lb. (5 kg)



All Other Pressure Tanks:

Fluid pressure ratio .................................................................................................................................. …….1:1

Maximum fluid outlet pressure ................................................................... see particular models

Maximum air input pressure..................................................................... 100 psi (7 bar, 0.7 MPa)

Agitator air consumption at 80 psi air @ 60 rpm......................................... 15 scfm (0.42 m3/min.)

Agitator motor size ............................................................................................ …1/2 hp (373 W)

Agitator gear ratio ....................................... ........................................................ …........ …. 20:1

Sound pressure level at 100 psi air @ 20 cpm................................................... .................................................................................................................... ….82 dBA

Air inlet............................................................................................... ……………........................................................................................................... …1/4 npt(m)

Fluid outlet........................................................................................................... …3/8 npsm(m)

Bottom outlet                                       … 3/4 npt(f)
