XM PFP Fire Proofing System
Product Code & Goods Description
106991
Chargeable weight: Information only available upon request
Dimensions : Information only available upon request

Passive fire protection (PFP) coatings make structures more resistant to fire by insulating structural steel from high temperatures and as a result, buy time for the evacuation before structural collapse.

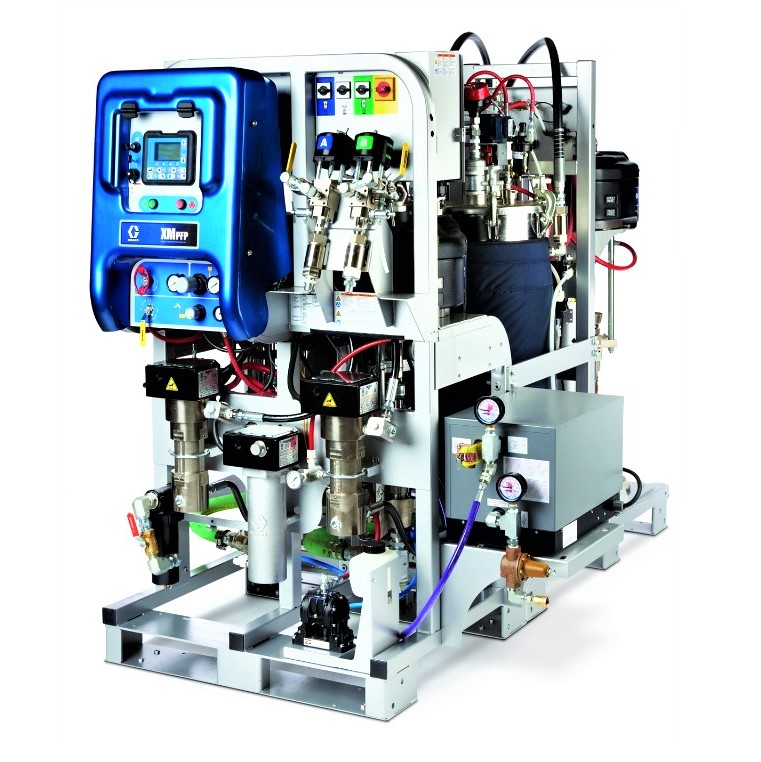

The Graco XM PFP Plural-Component Sprayer offers data reporting technology, so you can confirm that epoxy intumescent coatings are sprayed on-ratio, at requirements set by the manufacturer. The XM PFP is easy to use, maintains consistent temperature control and offers precise ratio control.

Features:

  • Handles two-part epoxy intumescent fire protection coatings from 1:1 to 10:1
  • Provides precise ratio control
  • If off-ratio conditions occur, the system will automatically stop
  • Offers data reporting for verification the material was properly applied
  • Monitors, tracks and collects data for: mix ratio, pressure, temperature, flow rates and material usage
  • USB port to easily download data reports
  • Accurate, on-ratio mixing reduces material waste
  • Virtually eliminates the difficult task of removing improperly mixed material
  • Offers peace of mind with "set and forget" parameter settings

Applications:

  • Pipe racking
  • Structural steel
  • Storage tanks
  • Onshore and offshore oil rigs
  • Living quarters
Quantity
Technical Specifications

Mix Ratio Range                                                       : 1:1 - 10:1 (In 0.01 increments)
Ratio Tolerance Range (before alarm)                     : +/- 5%
Max Flow Rate                                                         : 3 gpm (11.4 lpm)
Fluid to Air Pressure Ratio                                       : 60:1
Fluid Viscosity Range                                               : Handles mastic materials which are loaded into heated tanks with ram-fed priming piston pumps

Air inlet                                                                     : 1 in npt (f)
Fluid Inlets                                                                : Ram plate fed pail pumps
Max Fluid Working Pressure of mixed material        : 6000 psi (414 bar, 41.4 MPa)
Max Fluid Temp                                                        : 160°F (70°C)
Incoming Air Supply Pressure Range                       : 80-150psi(5.5-10.3 bar, 0.5-1.0MPa)
Max Pump Air Set Pressure                                      : 100 psi (7 bar, 0.7 MPa)
Max Tank Pressure                                                    : 100 psi (7 bar, 0.7 MPa)
Max Air Consumption                                                : 175 scfm (5 meter3/min)
Air Filtration                                                               : 40 micron main filter, 5 micron control filter, 40 micron filter

Ambient Operating Temp Range                               : 32° - 130°F (0° - 54°C)
Ambient Storage Temp Range                                  : 30° - 160°F (-1° - 71°C)
Environmental Conditions Rating                              : Altitude up to 13,123 ft (4000 m)
Sound Pressure                                                         : 86 dBA at 100 psi
Sound Power                                                             : 98 dBA at 100 psi
Weight                                                                       : 2175 lb (987 kg)

WETTED PARTS

Suction Tube (flush)                                                      : Aluminum
Tanks                                                                             : Stainless Steel
Flush Pump                                                                   : Carbide, PTFE, stainless steel, UHMWPE
Hoses                                                                            : Nylon
Pumps (A, B and feed pail)                                            : Carbon steel, alloy steel, 303, 440, 17-ph grades stainless steel, zinc and nickel plating, ductile iron, tungsten carbide, PTFE

Metering Valves                                                             : Carbon steel, nickel plating, carbide, polyethylene, leather

Manifold                                                                         : Carbon steel, nickel plating, carbide, 302 stainless steel, PTFE, UHMWPE

Mixer                                                                             : Stainless steel housing with stainless elements
