XM Plural-Component Sprayer
Product Code & Goods Description

Engineered to handle the toughest protective coatings, the Graco XM Plural-Component Sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials.



At the heart of the ratio control is Graco's advanced dosing technology. The major component is constantly flowing while the minor component is injected at higher pressures. Advanced sensing technology allows pumps to compensate for pressure fluctuations, resulting in accurate, on-ratio mixing for better yield and less waste.

Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job. Start with a base unit, then select the accessories you need - you get exactly what you need. No more, no less.

Features:

  • New dosing technology assures accurate, on-ratio mixing for better yield and less waste
  • Advanced, intuitive user controls provide real-time display of ratio
  • USB port lets you easily access and download historical spraying data
  • Supports multiple spray guns for added productivity
  • Allows for easy crane transport with eye hooks on air motors
  • Variable ratio system - handles material ratios from 1:1 to 10:1
Quantity

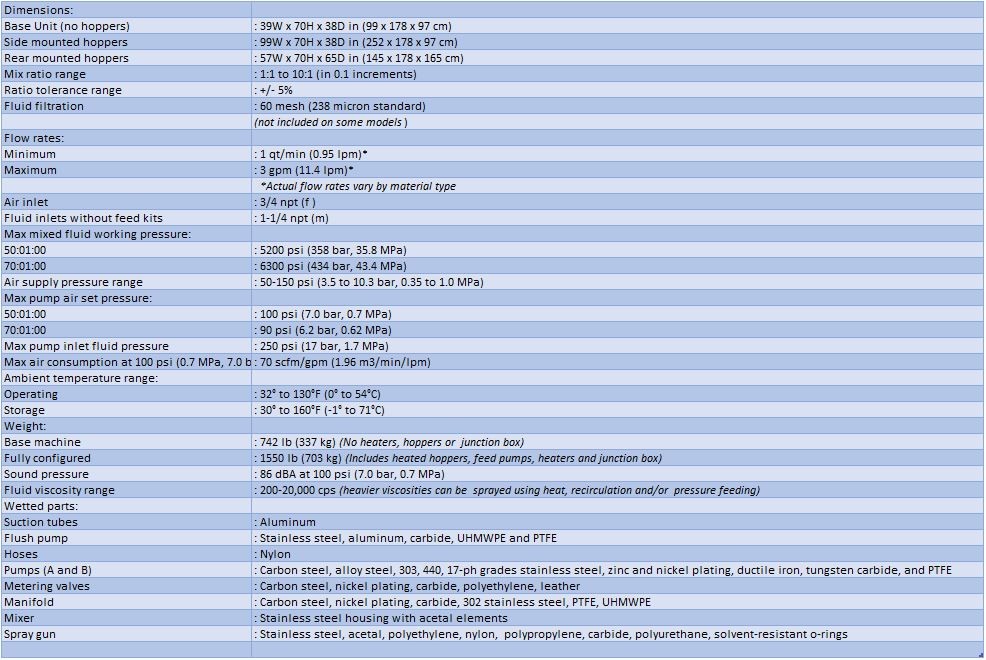

Technical Specifications

Dimensions:

Base Unit (no hoppers)                                                                : 39W x 70H x 38D in (99 x 178 x 97 cm)
Side mounted hoppers                                                                 : 99W x 70H x 38D in (252 x 178 x 97 cm)
Rear mounted hoppers                                                                : 57W x 70H x 65D in (145 x 178 x 165 cm)
Mix ratio range                                                                             : 1:1 to 10:1 (in 0.1 increments)
Ratio tolerance range                                                                   : +/- 5%
Fluid filtration                                                                                : 60 mesh (238 micron standard) (not included on some models)

Flow rates:

Minimum                                                                                        : 1 qt/min (0.95 lpm)*
Maximum                                                                                       : 3 gpm (11.4 lpm)*
*Actual flow rates vary by material type

Air inlet                                                                                           : 3/4 npt (f )
Fluid inlets without feed kits                                                           : 1-1/4 npt (m)

Max mixed fluid working pressure:

50:1                                                                                                 : 5200 psi (358 bar, 35.8 MPa)
70:1                                                                                                 : 6300 psi (434 bar, 43.4 MPa)

Air supply pressure range                                                          : 50-150 psi (3.5 to 10.3 bar, 0.35 to 1.0 MPa)

Max pump air set pressure:

50:1                                                                                                 : 100 psi (7.0 bar, 0.7 MPa)
70:1                                                                                                 : 90 psi (6.2 bar, 0.62 MPa)

Max pump inlet fluid pressure                                                  : 250 psi (17 bar, 1.7 MPa)

Max air consumption at 100 psi (0.7 MPa, 7.0 bar)            : 70 scfm/gpm (1.96 m3/min/lpm)

Ambient temperature range:

Operating                                                                                        : 32° to 130°F (0° to 54°C)
Storage                                                                                           : 30° to 160°F (-1° to 71°C)

Weight:

Base machine                                                                                 : 742 lb (337 kg) (No heaters, hoppers or junction box)
Fully configured                                                                              : 1550 lb (703 kg) (Includes heated hoppers, feed pumps, heaters and junction box)
Sound pressure                                                                              : 86 dBA at 100 psi (7.0 bar, 0.7 MPa)

Fluid viscosity range                                                                      : 200-20,000 cps (heavier viscosities can be sprayed using heat, recirculation and/or pressure feeding)

Wetted parts:

Suction tubes                                                                                 : Aluminum
Flush pump                                                                                    : Stainless steel, aluminum, carbide,

  UHMWPE and PTFE

Hoses                                                                                              : Nylon
Pumps (A and B)                                                                             : Carbon steel, alloy steel, 303, 440, 17-ph grades stainless steel, zinc and nickel plating, ductile iron, tungsten carbide, and PTFE

Metering valves                                                                            : Carbon steel, nickel plating, carbide, polyethylene, leather
Manifold                                                                                         : Carbon steel, nickel plating, carbide, 302 stainless steel, PTFE, UHMWPE

Mixer                                                                                               : Stainless steel housing with acetal elements
Spray gun                                                                                       : Stainless steel, acetal, polyethylene, nylon, polypropylene, carbide, polyurethane, solvent-resistant o-rings
