Reactor Heated Hose
Product Code & Goods Description

Graco’s heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.

Graco’s hoses are wrapped with a new multi-strand copper heating element that has greatly increased hose quality by providing 10-times (testing based on 1/4 in. 2000 psi heated hose) the flex life compared to previous flat copper heating element, achieves long-term, even heating without hot spots, and allows for backwards compatibility with existing Reactor heated hoses.

Features:

  • Copper-heated hoses are designed specifically for use with Graco proportioners
  • Covered with proprietary butyl cover for protection against moisture sensitive isocyanate
  • Hoses are covered with foam insulation for heat retention
  • Different fitting sizes on the isocyanate and resin hoses prevent accidentally connecting the wrong hoses together
  • Hoses use custom designed splice kit to electrically connect hoses without having to run copper under the fittings
  • Helix-design whip hose uses braided copper wires for added flexibility and longer life
  • Whip hoses 246050 and 246055 come standard with the new Xtreme-Wrap Scuff Guard
  • Other selected hoses may be ordered with the Xtreme-Wrap Scuff Guard for added protection and prolonged life
Quantity

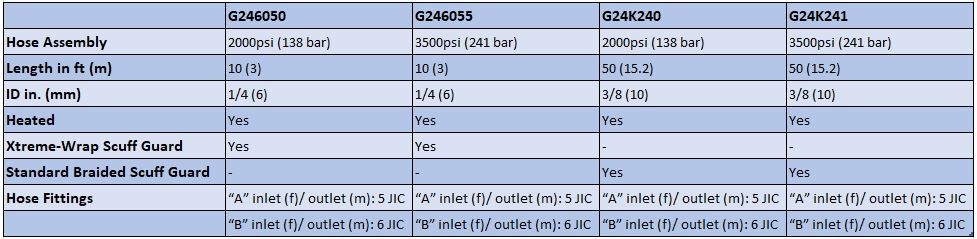

Technical Specifications



G246050

G246055

G24K240

G24K241

Hose Assembly

2000psi (138 bar)

3500psi (241 bar)

2000psi (138 bar)

3500psi (241 bar)

Length in ft (m)

10 (3)

10 (3)

50 (15.2)

50 (15.2)

ID in. (mm)

1/4 (6)

1/4 (6)

3/8 (10)

3/8 (10)

Heated

Yes

Yes

Yes

Yes

Xtreme-Wrap Scuff Guard

Yes

Yes

-

-

Standard Braided Scuff Guard

-

-

Yes

Yes

Hose Fittings

“A” inlet (f)/ outlet (m): 5 JIC

“B” inlet (f)/ outlet (m): 6 JIC

“A” inlet (f)/ outlet (m): 5 JIC

“B” inlet (f)/ outlet (m): 6 JIC

“A” inlet (f)/ outlet (m): 5 JIC

“B” inlet (f)/ outlet (m): 6 JIC

“A” inlet (f)/ outlet (m): 5 JIC

“B” inlet (f)/ outlet (m): 6 JIC
