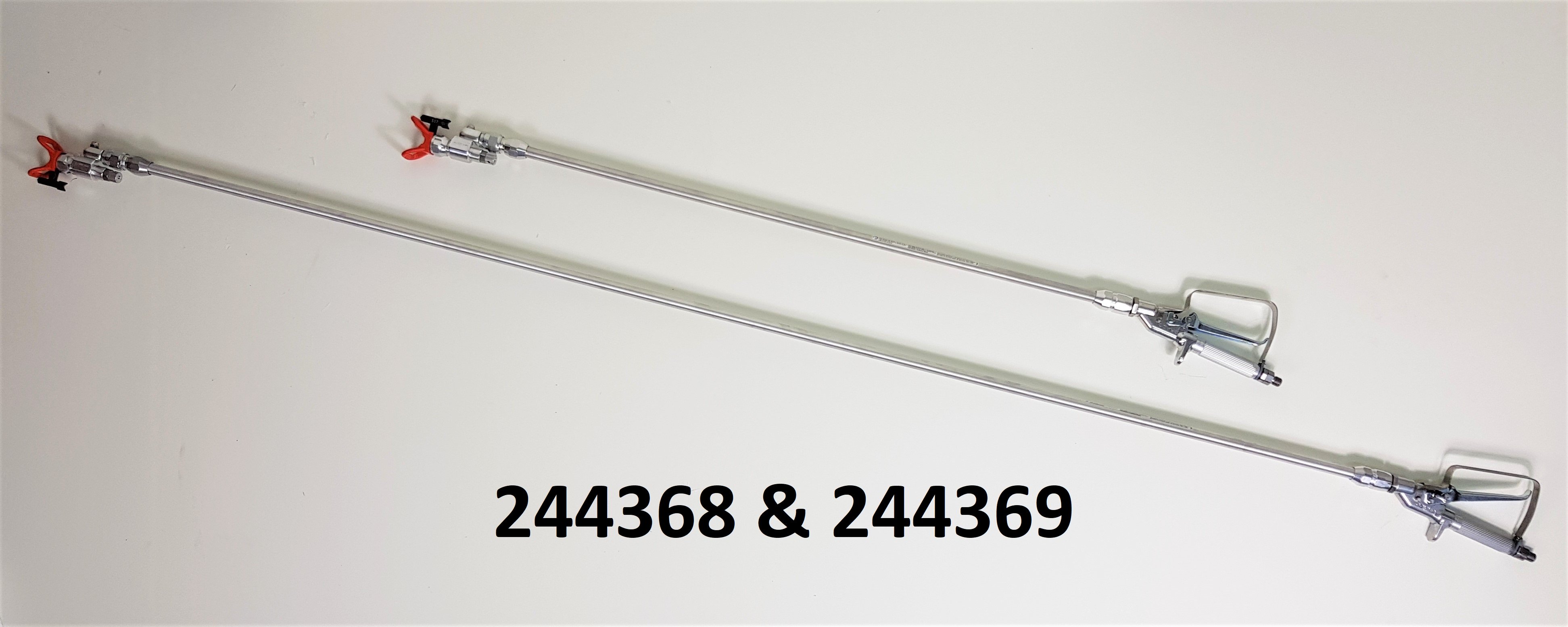

Pole Gun
Product Code & Goods Description

Graco's full line of Extended Reach Tools are ideal for hard-to-reach areas like soffits, stairways and vaulted ceilings. Extend your range and spray more efficiently without ladders or scaffolding.


  • Available in 3’ and 6’ configurations and provide better spray control and less fatigue.
  • Heavy-duty extensions are ideal for high-pressure spraying or pressure roller applications.
  • Unmatched spraying performance in high or recessed areas – Airless Tip Extensions can be attached directly to an airless gun making them ideal for spraying ceilings, overhangs, and decks.
  • CleanShot Valve can be attached directly to any extension and provides a clean fluid shutoff at the tip – no spitting.
  • Balanced design; no excessive weight at the end of the pole.

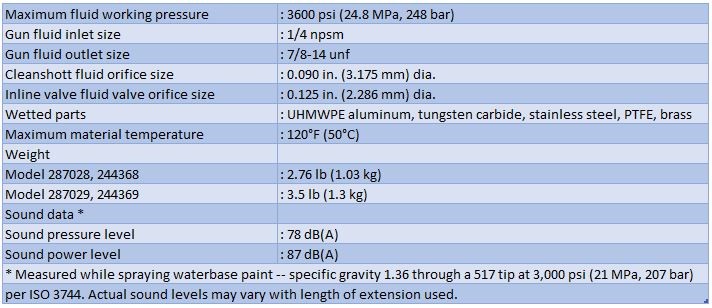

Technical Specifications

Maximum fluid working pressure               : 3600 psi (25 MPa, 248 bar)
Gun fluid inlet size                                     : 1/4 npsm
Gun fluid outlet size                                   : 7/8--14 unf
CleanShot fluid orifice size                        : 0.090 in. (3.175 mm) dia.
Inline valve fluid valve orifice size             : 0.125 in. (2.286 mm) dia.
Wetted parts                                              : UHMWPE aluminum, tungsten carbide, stainless steel, PTFE, brass
Maximum material temperature                : 120°F (50°C)
