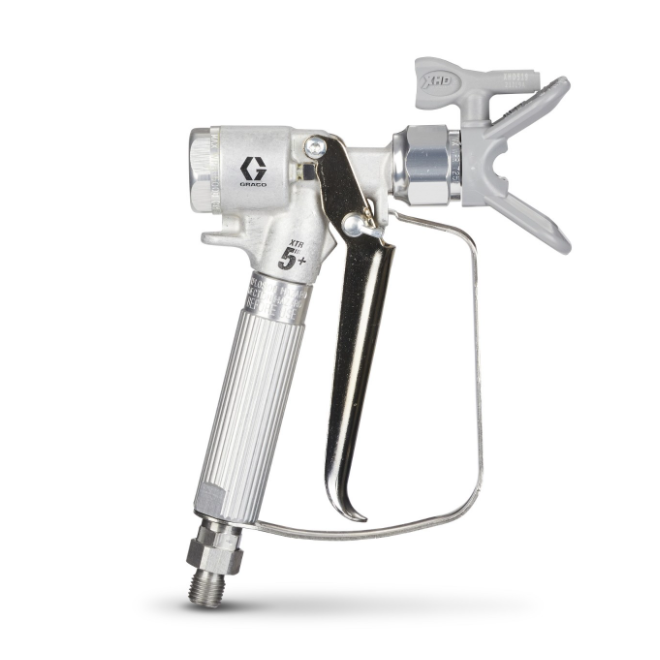

XTR5 Airless Spray Gun
Product Code & Goods Description

Airless spray guns meant for protective coatings, the XTR guns have a rugged, ergonomic design that handles the toughest protective coatings. Product highlights include an oval-insulated or round handle; EasyGlide swivel for better hose and gun movement; easy out gun filter which reduces tip plugging, making the XTR gun an ideal choice for hard-to-spray industrial coatings.


  • Variety of handle and trigger options for maximum spraying comfort
  • Compact design allows for easy access to tight places
  • High quality materials and construction
  • XTR-5 maximum fluid pressure: 5000 psi (345 bar, 34.5 MPa)
  • XTR-7 maximum fluid pressure: 7250 psi (500 bar, 50 MPa)
Technical Specifications

Maximum working pressure:

XTR 5                                : 5000 psi (35 MPa, 345 bar)
XTR 7                                : 7250 psi (50 MPa, 500 bar)
Fluid orifice:                       : 0.090 in. (2.3 mm)
Fluid inlet                           : 1/4 npsm (m)
Max. fluid temperature       : 160°F (71°C)
Sound pressure                 : 84.3 dB(A)*
Sound power                     : 95.7 dB(A)*
Wetted parts                      : aluminum, stainless steel, acetal, polyethylene, nylon, polypropylene, carbide, polyurethane, solvent-resistant o-rings

*Results are maximum readings taken at 6000 psi (41 MPa, 414 bar), with HD519 tip, using water. Sound power level was tested to ISO 9614-2.
