Speedo Marine (Pte) Ltd.

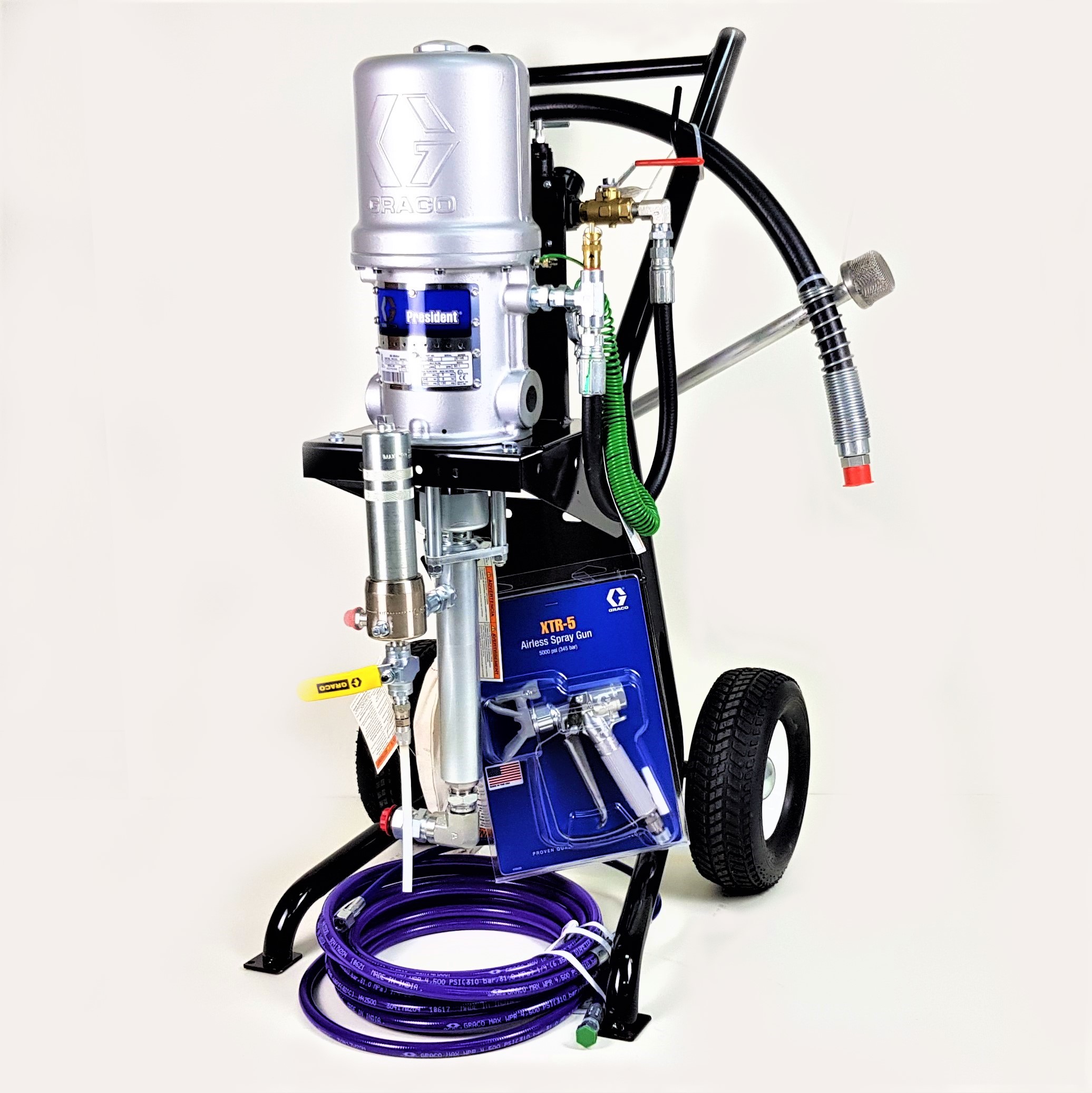

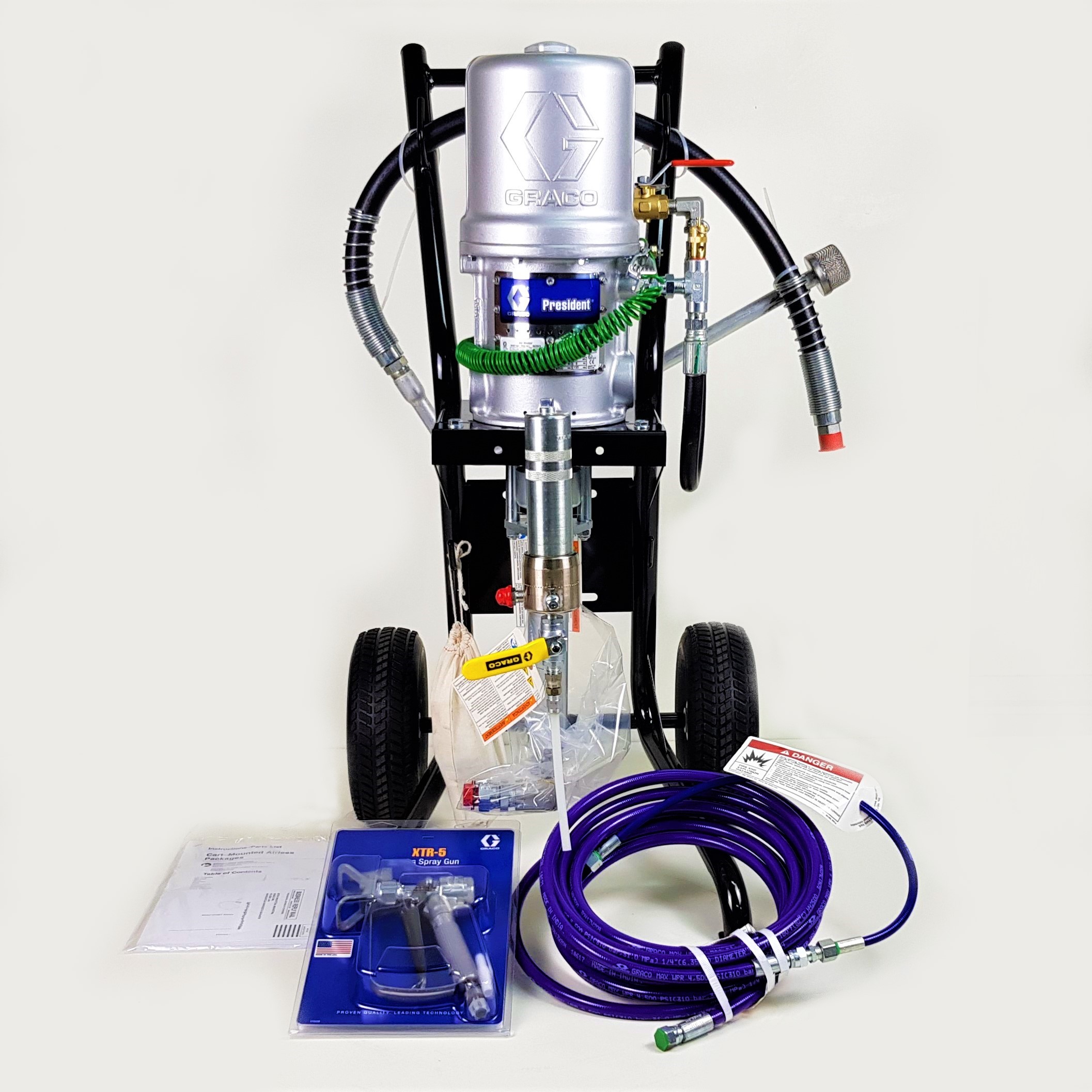

President 30:1 Airless Sprayer
Product Code & Goods Description
4527.6
Chargeable weight: 124.613 Kg
Dimensions : 85.344 x 70.104 x 124.968 cm

Graco’s President and Monark airless spray cart packages are designed to handle the rugged environment of protective coatings applications, as well as the demanding production needs of the heavy equipment manufacturer. These units are ideal for operations requiring the mobility of a cart-mounted sprayer. They are ready for use “right-out-of-the-box”, and are equipped with gun fluid hose swivel and whip hoses to provide the operator with maximum comfort and handling ease. These sprayers combine Graco’s pump and gun technologies to deliver high performance and trouble-free reliability.

Quantity
Technical Specifications

Fluid pressure ratio

President 30:1

Maximum fluid outlet pressure

3600 psi (25 MPa, 250 bar)

Maximum air input pressure

120 psi (0.8 MPa, 8 bar)

Fluid flow @ 60 cpm

1.0 gpm (3.8 lpm)

Volume per double stroke (cycle)

2.0 oz. (62 cc)

Air consumption @ 100 psi (0.7 MPa, 7 bar), air @ 20 cpm

10 scfm, (0.28 m³/min)

Sound pressure level @ 100 psi (0.7 MPa, 7 bar), air @ 20 cpm

81 dBA

Air inlet size

1/2 npt(f)

Fluid inlet size

3/4 npt(m)

Fluid outlet size

3/8 npt(f)

Height

30 in. (762 mm)

Stubby

47 in. (1194 mm)

Drum Length

Weight

30 lbs. (14 kg)

Drum Length

24 lbs. (11 kg)

All Other Models

Instruction manuals

308106

Model 223843 (SST)

306981

Models 223586, 221075, 243664
