Ultramax 490
Product Code & Goods Description
Chargeable weight: 23.587 Kg
Dimensions : 43.180 x 45.720 x 50.800 cm

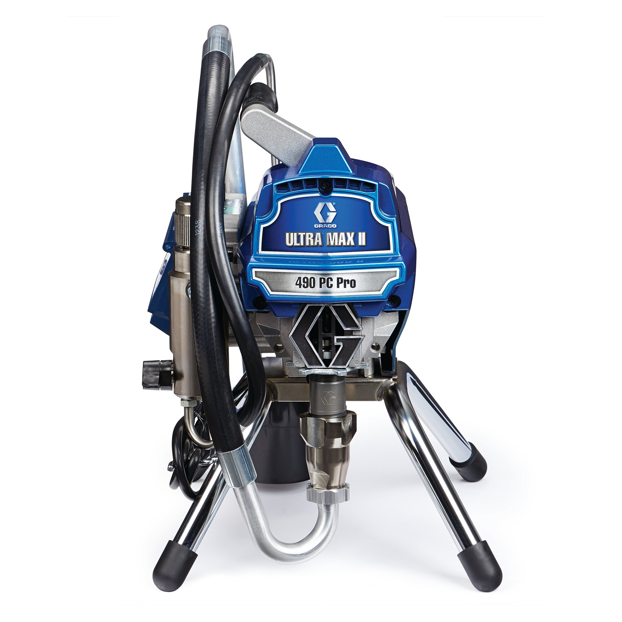

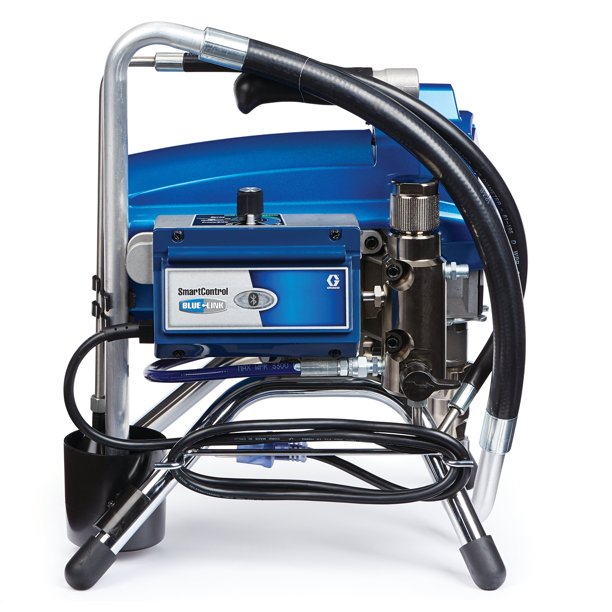

The Ultra Max II 490 PC Pro sprayer is the ideal step-up for professionals looking for superior performance and features in a small electric sprayer.

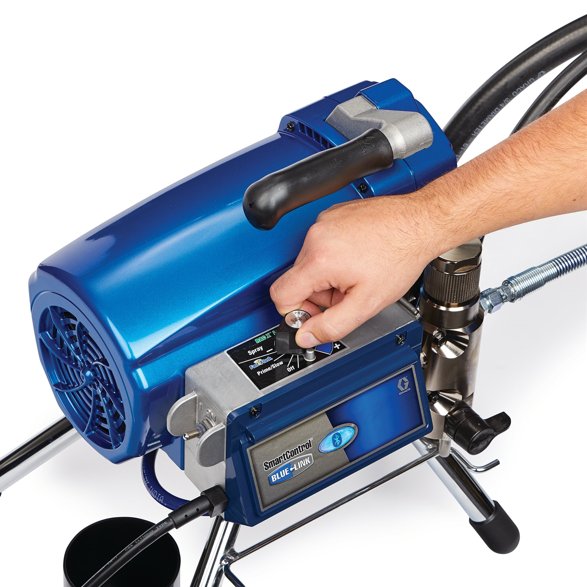

SmartControl 2.5

  • Digital display shows pressure, gallons, and hours
  • Provides error messages and diagnostics Aids in fleet management

Fast Flush

  • FastFlush high flow cleaning system runs faster and dramatically reduces cleaning time

MaxPower Motor

  • Graco’s compact and powerful brushless DC motors are designed to produce the most power possible for all painting applications
  • Higher torque = More work done
  • Totally enclosed, fan-cooled design protects the internal components of the motor from dirt, dust and overspray
  • Brushless design means that you will never need to replace brushes
  • DC motors are more forgiving to voltage fluctuation allowing them to run on longer power cords

Endurance Pump

  • The most reliable pump on the market— lasts 2 times longer than the next leading brand
  • Long-life V-Max Blue™ packings, Chromex™rod and hardened stainless steel cylinder
  • QuikAccess™ intake valve for fast cleaning or debris clearing

Easy Out Pump Filter

  • Vertical design helps eliminate spills
  • Filters from the inside out and won’t collapse
  • Large 7.8 square inch (19.81 cm) filtering area reduces tip clogs
  • Flow-through design cleans with only a few gallons

Advantage Drive

  • Hardened steel gears run extremely quiet
  • High ratio reduction provides slow pump stroking that reduces wear and extends pump life

Ready to Work

  • Professional grade hose, gun, tip and throat seal liquid included
  • Lighted plug verifies power
Technical Specifications


MAX TIP SIZE                    : 0.023
MAX GPM (LPM)                : 0.54 (2)
MAX PSI (BAR)                   : 3000 (227)
MOTOR                               : 1 HP Bruchless DC
WEIGHT LB (KG)                : 43 (20) stand mount


  • 1/4 in x 50 ft BlueMax™ II Hose
  • Contractor Gun
  • RAC X 517 SwitchTip and Guard
