MiniTest 700 / SmarTest ( Inspection & Measuring )
Product Code & Goods Description

The coating thickness gauges by ElektroPhysik from the MiniTest 700 series rank among the most accurate and versatile coating thickness measuring devices.

The device is available in 3 versions:

MiniTest 725: Measuring device with integrated sensor.

MiniTest 735: Sensor connected by cable to the measuring device.

MiniTest 745: The sensor can be optionally plugged into the device (equivalent of an integrated sensor), connected by cable to the device, or connected wireless via Bluetooth to the device.

The MiniTest 700 series devices facilitate non-destructive coating measurement of non-magnetic coatings (paint, synthetic material, chromium etc.) on ferromagnetic substrates (steel) and of insulating coatings (varnish, enamel, synthetic material, anodising aluminium etc.) on conductive substrates (aluminium, copper, austenitic stainless steel).

Highlights:

  • Sensor integrated digital signal processing (SIDSP) of measurement values
  • All sensors can be connected without cables to the MiniTest 745 device
  • Wear resistant sensors
  • Bluetooth and USB interfaces
  • Graphical menu control
  • Instructions in 20 languages

SmarTest is an intelligent wireless sensor for non-destructive coating thickness measurement and relays sensor data via Bluetooth to your tablet, smart phone or to the coating thickness gauge MiniTest 745.

The radio sensor SmarTest is 16 mm / 0.63" in diameter and 125 mm / 4.92" in length somewhat like a thick ballpoint pen and weighs just 48 g / 1.7 oz. This means that you can carry the SmarTest with you anywhere.

The standard scope of supply comes with the F 2.6 or FN 2.6 sensor, which has been specially optimised for measuring on thin auto body sheets and can be used for a sheet thickness downwards of 0.3 mm / 12 mils. You can connect any SIDSP sensor to SmarTest and cover a wide range of coating thickness measurement tasks.

Quantity

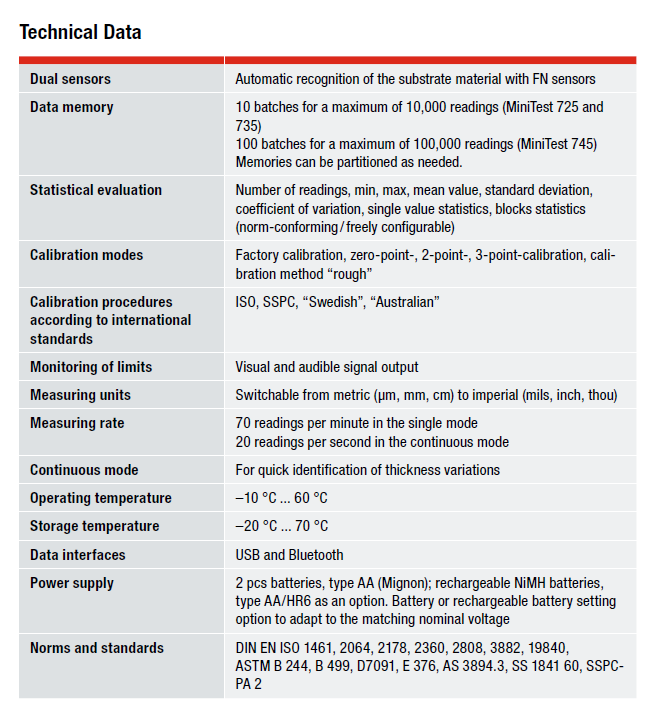

Technical Specifications
