Speedo Marine (Pte) Ltd.

Garnet ( Blasting )
Product Code & Goods Description

Garnet is an efficient and cost-effective substitute for silica sand and mineral slag in most blast cleaning operations. The high specific gravity and tough, durable grains allow reduced material usage and minimum dust levels. Many users recycle the hard almandine garnet grain up to eight times for added benefit.

Properties:

  • Natural grain sizes from 106 to 2000 microns
  • Specific weight of 4.0 g/cm³
  • Average bulk density of 2.4 g/cm³
  • Highly stable, non- hygroscopic, inert and not susceptible to acid
  • Does not contaminate surfaces of non-ferrous materials
  • Exhibits high toughness with a very low particle breakdown on impact
  • Does not contain free silica
Quantity

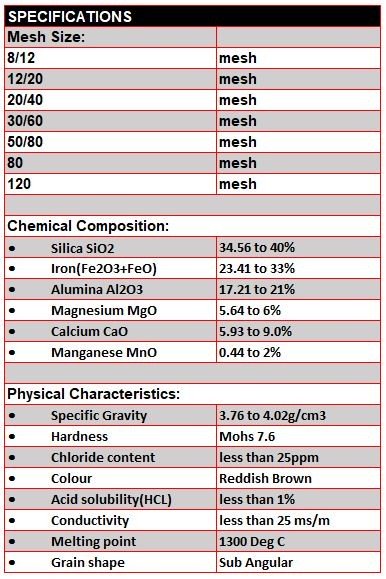

Technical Specifications

Technical Specs:

Mesh Size:
8/12       mesh
12/20     mesh
20/40     mesh
30/60     mesh
50/80     mesh
80           mesh
120         mesh
Chemical Composition:

  • Silica SiO2 56 to 40%
  • Iron(Fe2O3+FeO) 41 to 33%
  • Alumina Al2O3 21 to 21%
  • Magnesium MgO 64 to 6%
  • Calcium CaO 93 to 9.0%
  • Manganese MnO 44 to 2%

Physical Characteristics:

  • Specific Gravity 76 to 4.02g/cm3
  • Hardness Mohs 7.6
  • Chloride content less than 25ppm
  • Colour Reddish Brown
  • Acid solubility(HCL) less than 1%
  • Conductivity less than 25 ms/m
  • Melting point 1300 Deg C
  • Grain shape Sub Angular
