Speedo Marine (Pte) Ltd.

Blast Hose (Red)
Product Code & Goods Description

Developed for conveying abrasive sandblasting materials in cleaning and blasting metal, casting and concrete surfaces.

Features:

  • Long service life due to abrasive resistant tube
  • Security against electrical shocks by electrically conductive lining
Quantity

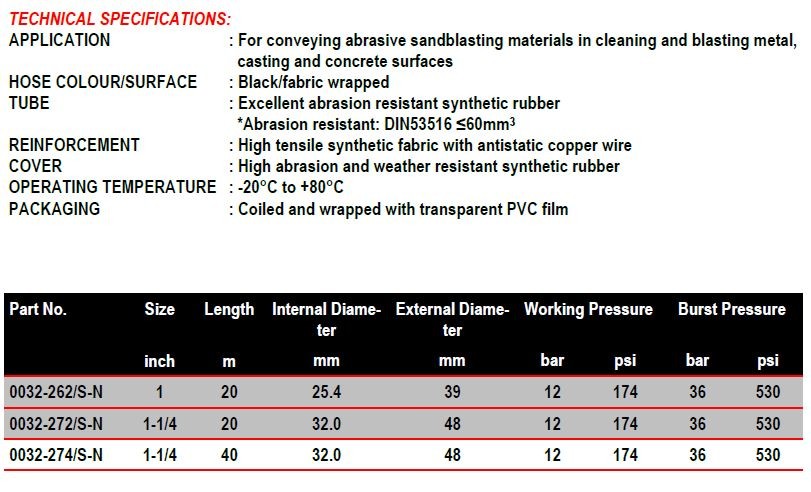

Technical Specifications
APPLICATION   : For conveying abrasive sandblasting materials in cleaning and blasting metal, casting and concrete surfaces
HOSE COLOUR/SURFACE : Black/fabric wrapped
TUBE

: Excellent abrasion resistant synthetic rubber

 *Abrasion resistant: DIN53516 ≤60mm3

REINFORCEMENT : High tensile synthetic fabric with antistatic copper wire
COVER            : High abrasion and weather resistant synthetic rubber
OPERATING TEMPERATURE : 20°C to +80°C
PACKAGING   : Coiled and wrapped with transparent PVC film



Part No.

Size

Length

Internal Diameter

External Diameter

Working Pressure

Burst Pressure



inch

m

mm

mm

bar

psi

bar

psi

0032-242/S-N

1/2

20

13.0

27

12

174

36

530

0032-252/S-N

3/4

20

19.0

33

12

174

36

530

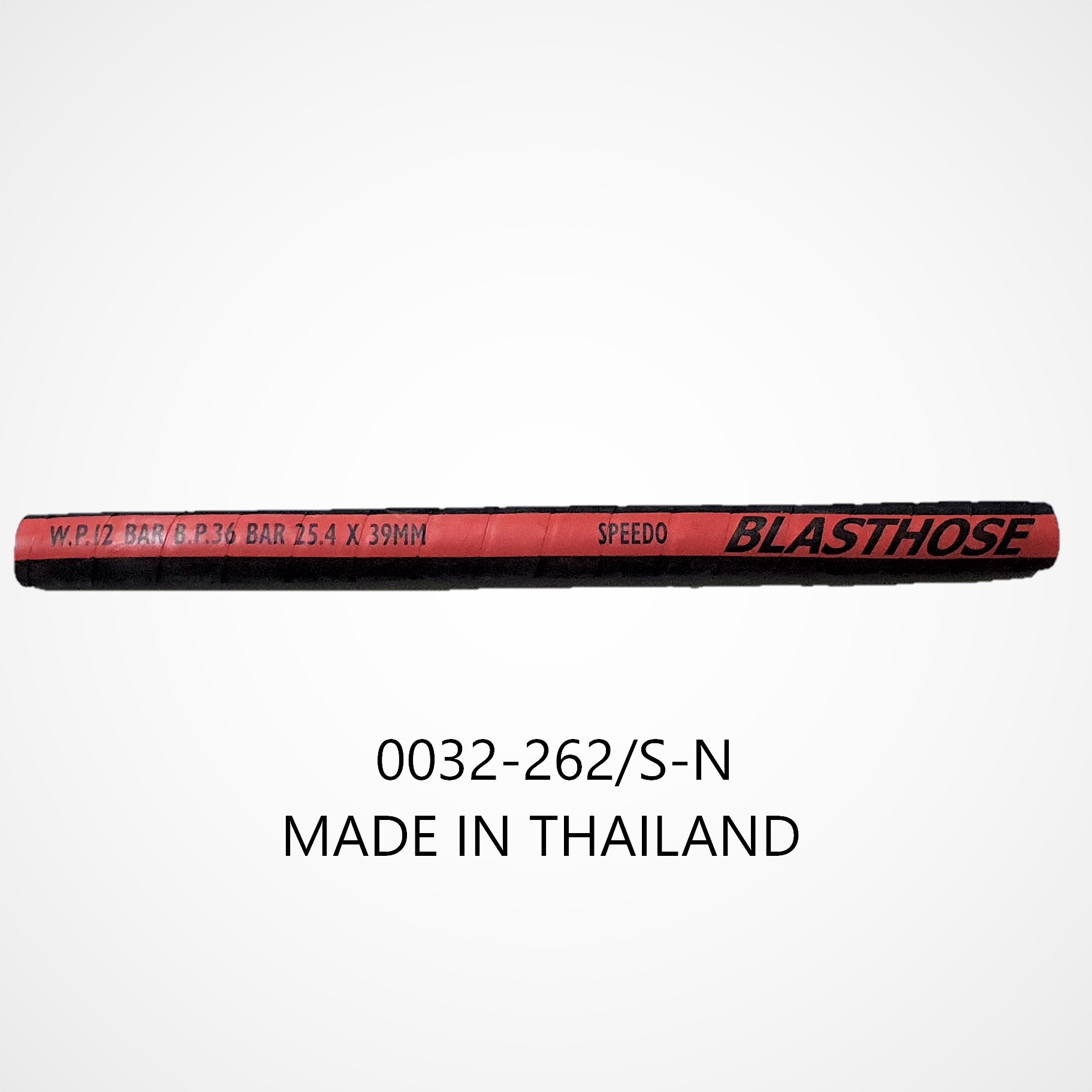

0032-262/S-N

1

20

25.4

39

12

174

36

530

0032-264/S-N

1

40

25.4

39

12

174

36

530

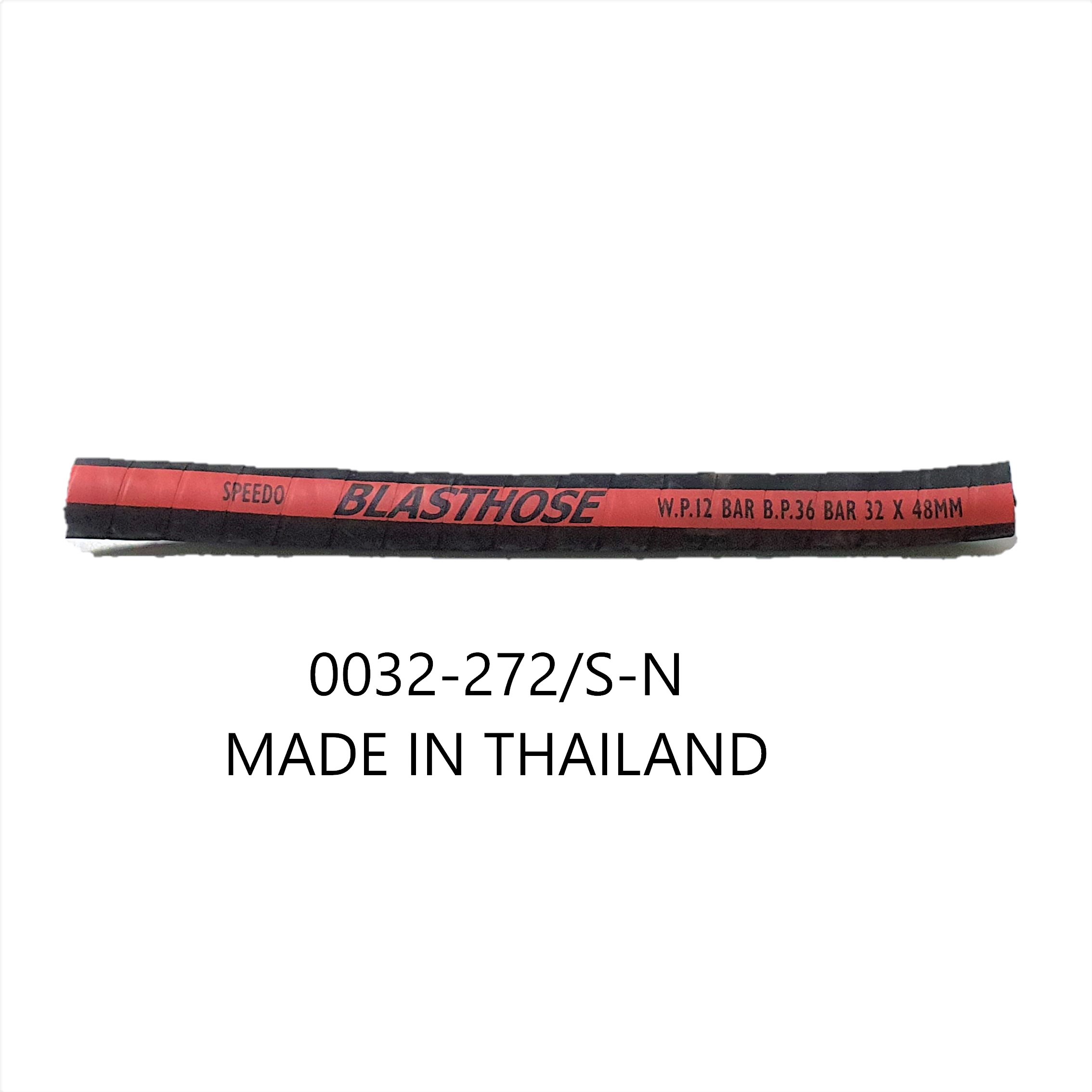

0032-272/S-N

1-1/4

20

32.0

48

12

174

36

530

0032-274/S-N

1-1/4

40

32.0

48

12

174

36

530
